CW1244 datasheet by Cellwise.
| Part number | CW1244 |
|---|---|
| Datasheet | CW1244-Cellwise.pdf |
| File Size | 741.36 KB |
| Manufacturer | Cellwise |
| Description | Li-Ion/Polymer Battery Pack Protection IC |
|
|

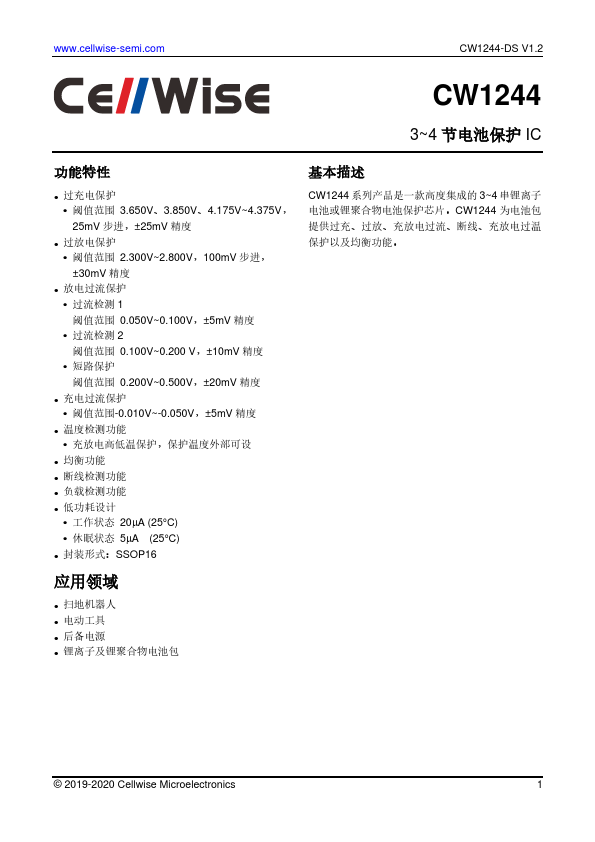

.cellwise-semi. CW1244-DS V1.2 CW1244 3~4 节电池保护 IC 功能特性 基本描述 过充电保护 阈值范围 3.650V、3.850V、4.175V~4.375V， 25mV 步进，± 25mV 精度 过放电保护 阈值范围 2.300V~2.800V，100mV 步进， ± 30mV 精度 放电过流保护 过流检测 1 阈值范围 0.050V~0.100V，± 5mV 精度 过流检测 2 阈值范围 0.100V~0.200 V，± 10mV 精度 短路保护 阈值范围.
| Part Number | Description |
|---|---|
| CW1243 | 4 Cell Li-Ion/Polymer Battery Pack Protection IC |
| CW1252B | 5 Battery Protection IC |
| CW1254 | 4-5 battery protection IC |
| CW1274 | Li-Ion/Polymer Battery Pack Protection IC |
| CW1051 | 2~5 Channel Secondary Protection IC |
| CW1053 | 5 Cell Li-Ion/Polymer Battery Pack Protection IC |
| CW1072 | 6-7 battery protection |
| CW1073 | 6-7 Battery protection |
| CW1353 | 4-5 battery protection IC |
