BCX52 datasheet by Central Semiconductor.
| Part number | BCX52 |
|---|---|
| Datasheet | BCX52_CentralSemiconductorCorp.pdf |
| File Size | 444.36 KB |
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT PNP SILICON TRANSISTOR |
|
|

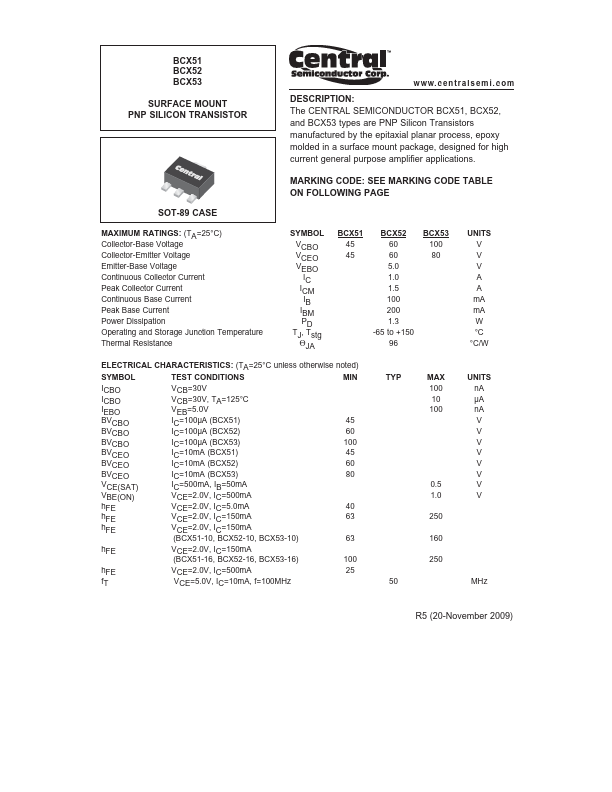

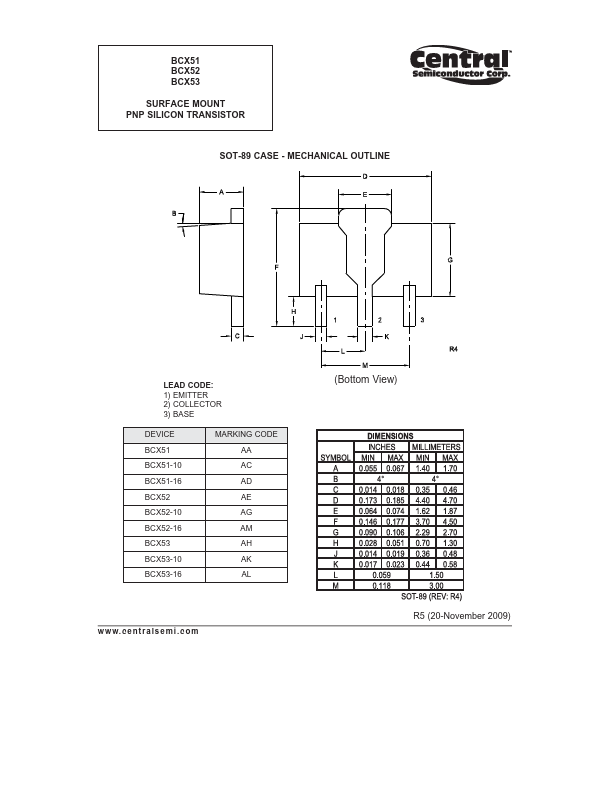

The CENTRAL SEMICONDUCTOR BCX51, BCX52, and BCX53 types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current general purpose amplifier applications. SOT-89 CASE MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE MAXIMUM RATINGS:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BCX52 | PNP Medium Power Transistor | Multicomp |
 |
BCX52 | PNP Silicon AF Transistors | Bruckewell |
 |
BCX52 | PNP medium power transistors | NXP |
 |
BCX52 | PNP Silicon AF Transistors | Infineon Technologies AG |
 |
BCX52 | 60V 1A PNP medium power transistors | nexperia |
