CZT2000 - NPN SILICON EXTREMELY HIGH VOLTAGE DARLINGTON TRANSISTOR

Datasheet Summary

Description

Semiconductor Corp.

The CENTRAL SEMICONDUCTOR CZT2000 type is an NPN Epitaxial Planar Silicon Darlington Transistor manufactured in an epoxy molded surface mount package, designed for applications requiring extremely high voltages and high gain capability.

📥 Download Datasheet

Datasheet preview – CZT2000

Datasheet Details

Part number CZT2000
Manufacturer Central Semiconductor Corp
File Size 92.56 KB
Description NPN SILICON EXTREMELY HIGH VOLTAGE DARLINGTON TRANSISTOR
Datasheet download datasheet CZT2000 Datasheet

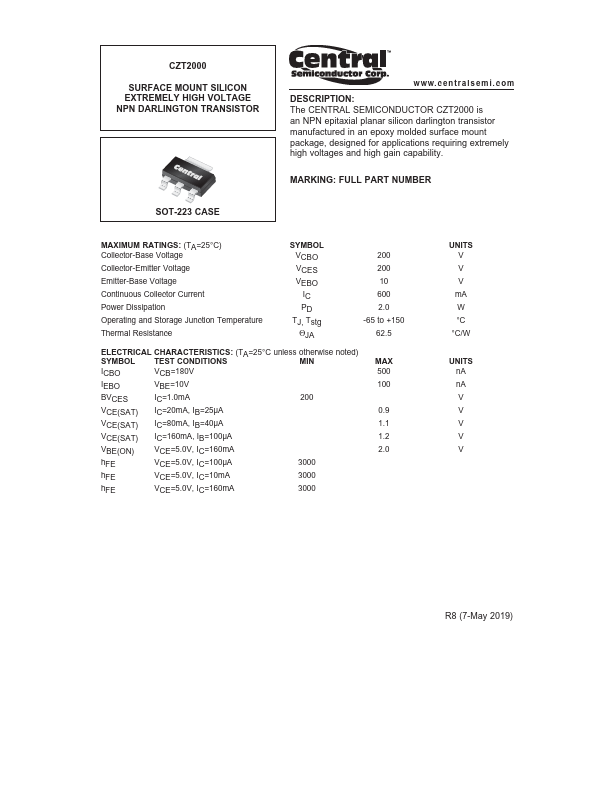

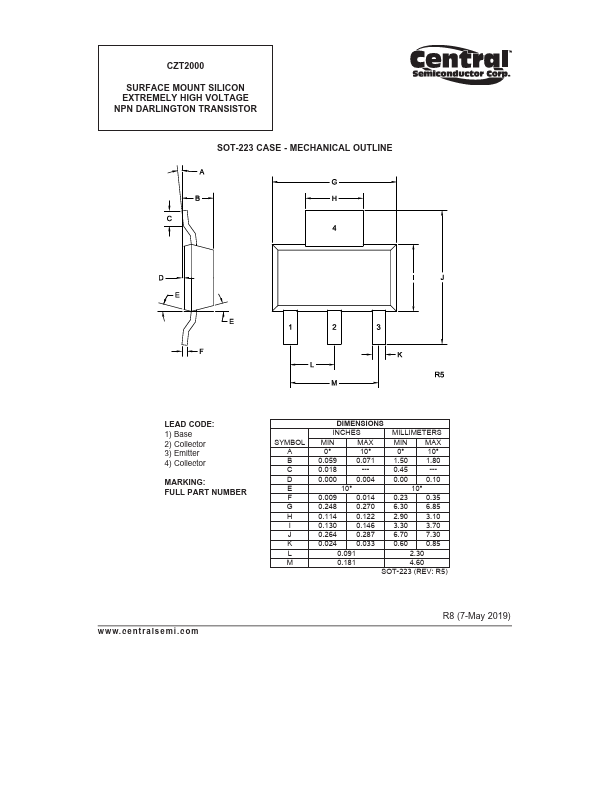

Additional preview pages of the CZT2000 datasheet.
