BAW100G - SILICON SWITCHING DIODES

Download the BAW100G datasheet PDF. This datasheet also covers the BAW100 variant, as both devices belong to the same silicon switching diodes family and are provided as variant models within a single manufacturer datasheet.

General Description

The CENTRAL SEMICONDUCTOR BAW100 and BAW100G each consist of two electrically isolated high speed silicon switching diodes packaged in an epoxy molded SOT-143 surface mount case.

This device is designed for high speed switching applications.

The BAW100G is Halogen Free by design.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAW100-CentralSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAW100 Silicon Switching Diode Array Siemens Group
BAW100 Silicon Switching Diode Array Kexin
BAW101 Silicon Switching Diode Siemens Group
BAW101 HIGH VOLTAGE SWITCHING DIODE Central Corp
BAW101 Silicon Switching Diode Infineon Technologies AG

Other Datasheets by Central Semiconductor

Part Number Description
BAW100 SILICON SWITCHING DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

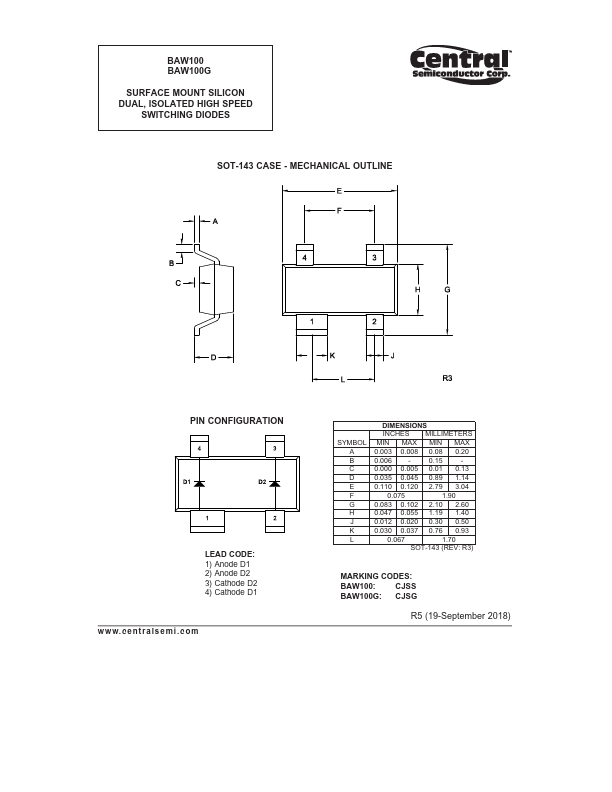

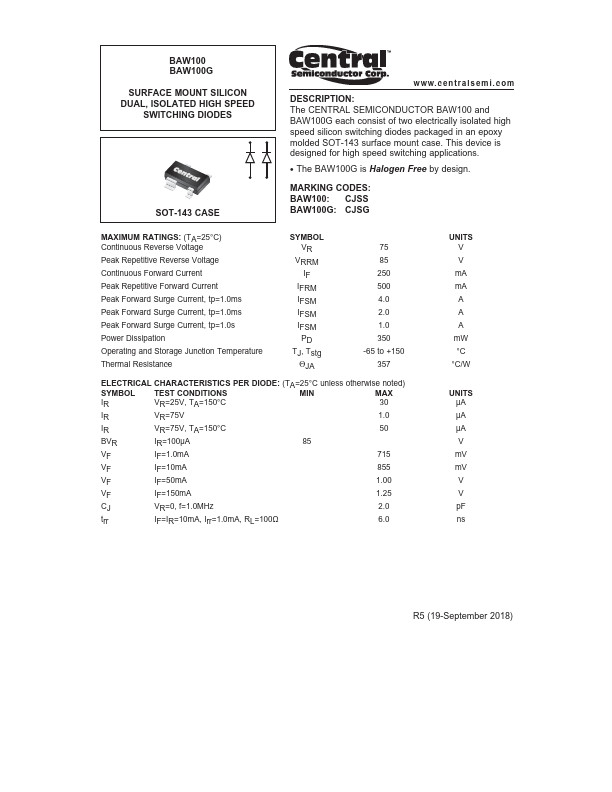

BAW100 BAW100G SURFACE MOUNT DUAL, ISOLATED HIGH SPEED SILICON SWITCHING DIODES SOT-143 CASE w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR BAW100 and BAW100G each consist of two electrically isolated high speed silicon switching diodes packaged in an epoxy molded SOT-143 surface mount case. This device is designed for high speed switching applications. • The BAW100G is Halogen Free by design. MARKING CODES: BAW100: CJSS BAW100G: CJSG MAXIMUM RATINGS: (TA=25°C) Continuous Reverse Voltage Peak Repetitive Reverse Voltage Continuous Forward Current Peak Repetitive Forward Current Peak Forward Surge Current, tp=1.0ms Peak Forward Surge Current, tp=1.0ms Peak Forward Surge Current, tp=1.
