Datasheet Details
| Part number | BC182 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 315.67 KB |
| Description | SILICON NPN TRANSISTOR |
| Datasheet | BC182-CentralSemiconductor.pdf |
|
|
Overview: BC182 SILICON NPN TRANSISTOR w w w. c e n t r a l s e m i . c o.
| Part number | BC182 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 315.67 KB |
| Description | SILICON NPN TRANSISTOR |
| Datasheet | BC182-CentralSemiconductor.pdf |
|
|
|

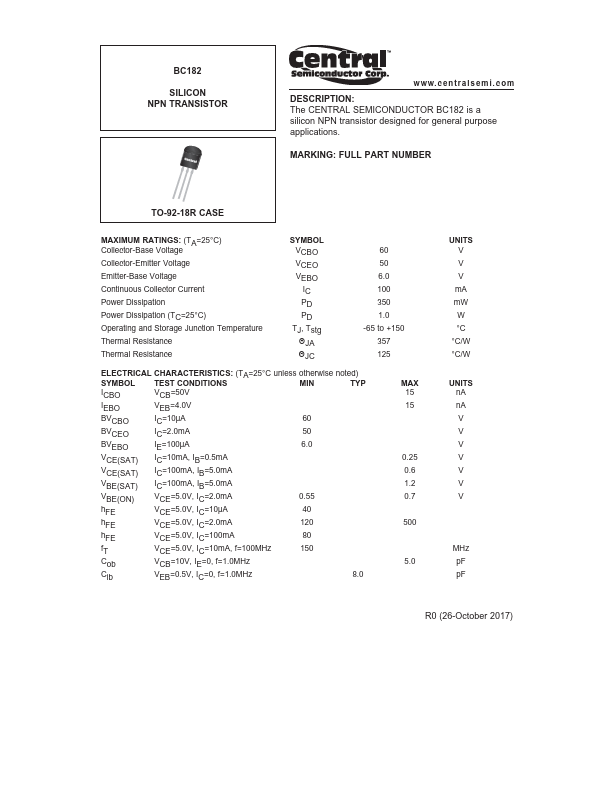

: The CENTRAL SEMICONDUCTOR BC182 is a silicon NPN transistor designed for general purpose applications.

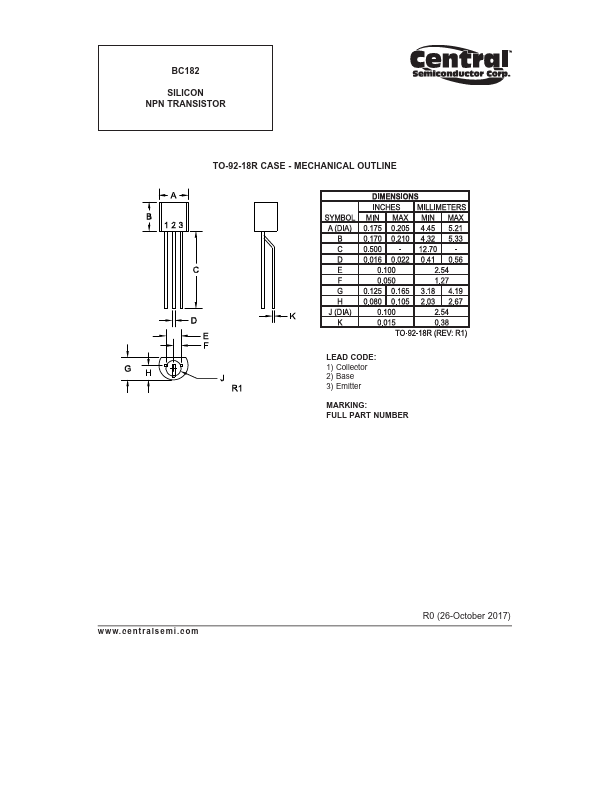

MARKING: FULL PART NUMBER TO-92-18R CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Power Dissipation (TC=25°C) Operating and Storage Junction Temperature Thermal Resistance Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD PD TJ, Tstg JA JC 60 50 6.0 100 350 1.0 -65 to +150 357 125 ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN TYP ICBO VCB=50V IEBO VEB=4.0V BVCBO IC=10µA 60 BVCEO IC=2.0mA 50 BVEBO IE=100µA 6.0 VCE(SAT) IC=10mA, IB=0.5mA VCE(SAT) IC=100mA, IB=5.0mA VBE(SAT) IC=100mA, IB=5.0mA VBE(ON) VCE=5.0V, IC=2.0mA 0.55 hFE VCE=5.0V, IC=10µA 40 hFE VCE=5.0V, IC=2.0mA 120 hFE VCE=5.0V, IC=100mA 80 fT VCE=5.0V, IC=10mA, f=100MHz 150 Cob VCB=10V, IE=0, f=1.0MHz Cib VEB=0.5V, IC=0, f=1.0MHz 8.0 MAX 15 15 0.25 0.6 1.2 0.7 500 5.0 UNITS V V V mA mW W °C °C/W °C/W UNITS nA nA V V V V V V V MHz pF pF R0 (26-October 2017) BC182 SILICON NPN TRANSISTOR TO-92-18R CASE - MECHANICAL OUTLINE LEAD CODE: 1) Collector 2) Base 3) Emitter MARKING: FULL PART NUMBER w w w.
c e n t r a l s e m i .
