Overview: BC807 SERIES SURFACE MOUNT SILICON PNP TRANSISTORS w w w. c e n t r a l s e m i .
Download the BC807-40 datasheet PDF. This datasheet also includes the BC807 variant, as both parts are published together in a single manufacturer document.
| Part number | BC807-40 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 271.06 KB |
| Description | SURFACE MOUNT SILICON PNP TRANSISTORS |
| Download | BC807-40 Download (PDF) |
|
|
|
: The CENTRAL SEMICONDUCTOR BC807 series devices are silicon PNP transistors, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.

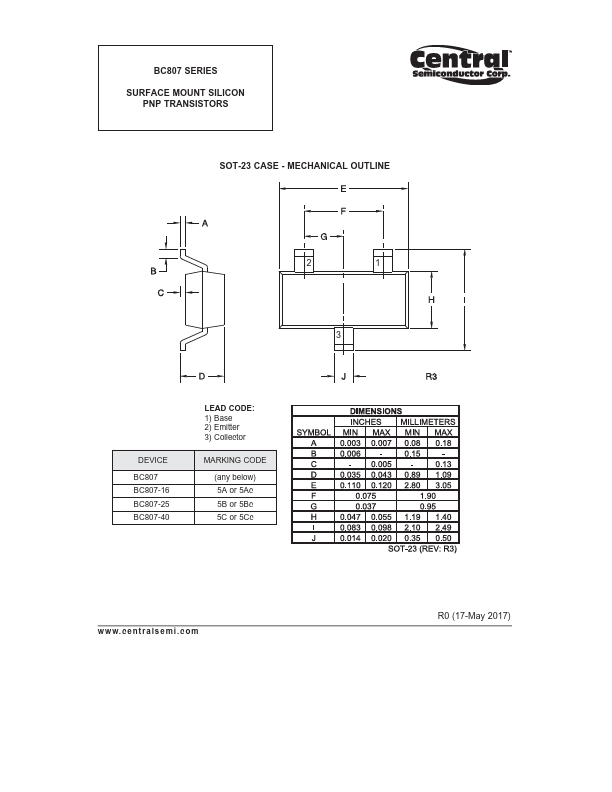

MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE SOT-23 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA 50 45 5.0 500 300 -65 to +150 417 ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN TYP ICBO VCB=20V ICBO VCB=20V, TJ=150°C BVCES IC=10µA 50 BVCEO IC=10mA 45 BVEBO IE=1.0µA 5.0 VCE(SAT) IC=500mA, IB=50mA VBE(ON) VCE=1.0V, IC=500mA fT VCE=5.0V, IC=10mA, f=100MHz 200 Cob VCB=10V, f=1.0MHz 10 MAX 100 5.0 0.7 1.2 BC807 BC807-16 BC807-25 MIN MAX MIN MAX MIN MAX hFE VCE=1.0V, IC=100mA 100 600 100 250 160 400 hFE VCE=1.0V, IC=500mA 40 - 40 - 40 - UNITS V V V mA mW °C °C/W UNITS nA µA V V V V V MHz pF BC807-40 MIN MAX 250 600 40 - R0 (17-May 2017) BC807 SERIES SURFACE MOUNT SILICON PNP TRANSISTORS SOT-23 CASE - MECHANICAL OUTLINE 2 1 3 DEVICE BC807 BC807-16 BC807-25 BC807-40 LEAD CODE: 1) Base 2) Emitter 3) Collector MARKING CODE (any below) 5A or 5Ac 5B or 5Bc 5C or 5Cc w w w.
c e n t r a l s e m i .
Compare BC807-40 distributor prices and check real-time stock availability from major suppliers. Prices and inventory may vary by region and order quantity.
