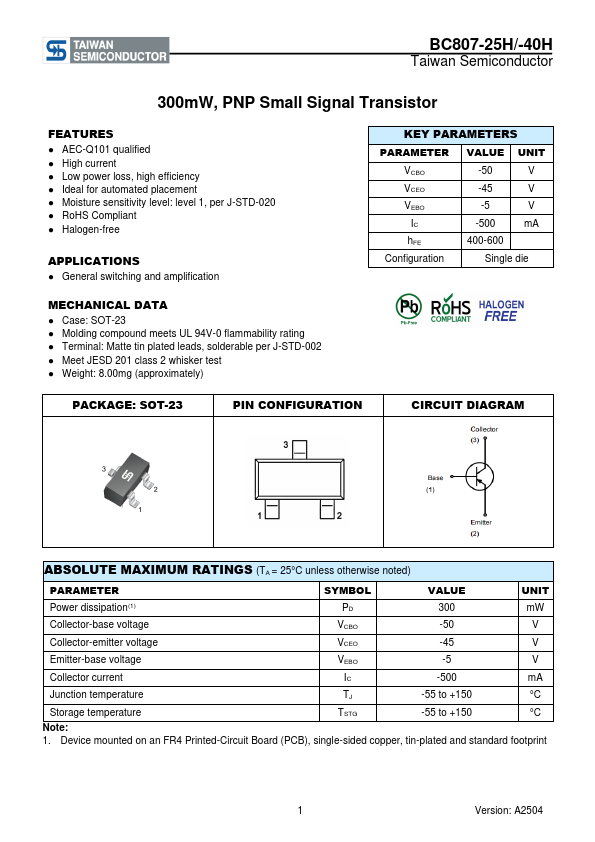

Datasheet Summary
BC807-25H/-40H
Taiwan Semiconductor
300mW, PNP Small Signal Transistor
Features
- AEC-Q101 qualified
- High current
- Low power loss, high efficiency
- Ideal for automated placement
- Moisture sensitivity level: level 1, per J-STD-020
- RoHS pliant
- Halogen-free
APPLICATIONS
- General switching and amplification
MECHANICAL DATA
- Case: SOT-23
- Molding pound meets UL 94V-0 flammability rating
- Terminal: Matte tin plated leads, solderable per J-STD-002
- Meet JESD 201 class 2 whisker test
- Weight: 8.00mg (approximately)
KEY PARAMETERS
PARAMETER VALUE UNIT
VCBO VCEO VEBO
-50
-45
-5
-500 mA hFE Configuration
400-600 Single die
PACKAGE: SOT-23
PIN...
