BC846 - NPN SILICON TRANSISTOR

General Description

The CENTRAL SEMICONDUCTOR BC846, BC847 and BC848 Series types are NPN Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC846 100mA NPN general-purpose transistors nexperia
BC846 100 mA NPN general-purpose transistors NXP
BC846 NPN EPITAXIAL SILICON TRANSISTOR Fairchild Semiconductor
BC846 Small Signal Transistors General Semiconductor
BC846 NPN Silicon Transistor AUK corp

Other Datasheets by Central Semiconductor

Part Number Description
BC846A NPN SILICON TRANSISTOR
BC846AT SURFACE MOUNT NPN SILICON TRANSISTOR
BC846AW SURFACE MOUNT NPN SILICON TRANSISTOR
BC846B NPN SILICON TRANSISTOR
BC846BT SURFACE MOUNT NPN SILICON TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

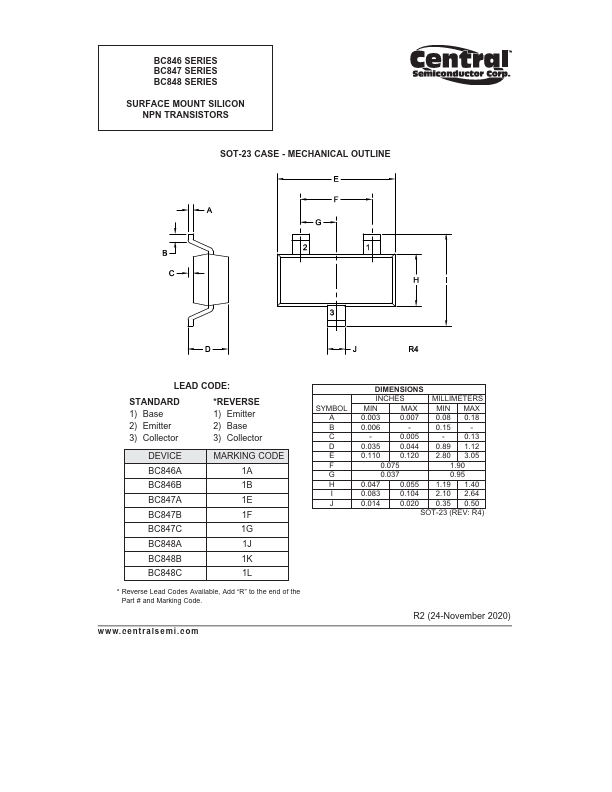

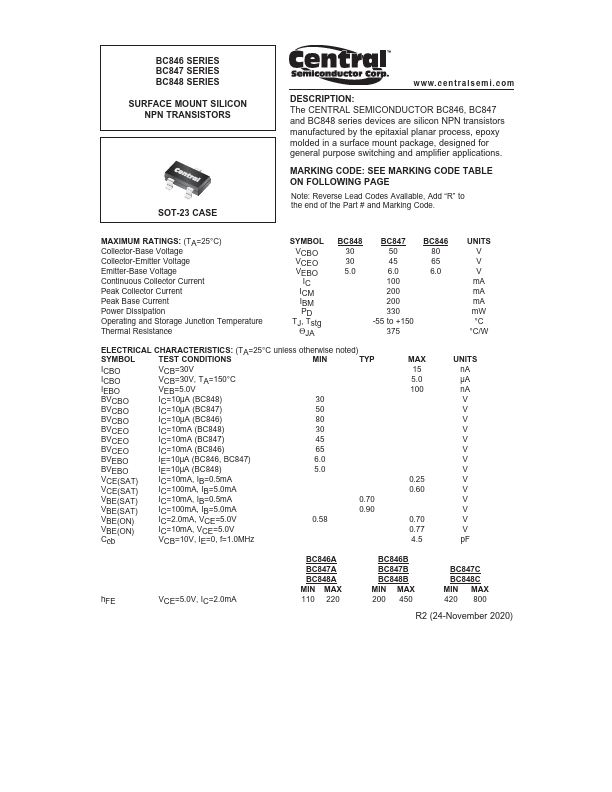

BC846 SERIES BC847 SERIES BC848 SERIES SURFACE MOUNT NPN SILICON TRANSISTOR SOT-23 CASE w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR BC846, BC847 and BC848 Series types are NPN Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
