BC846AW datasheet by Central Semiconductor.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC846AW |
|---|---|
| Datasheet | BC846AW BC846W Datasheet (PDF) |
| File Size | 274.44 KB |
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT NPN SILICON TRANSISTOR |
|
|

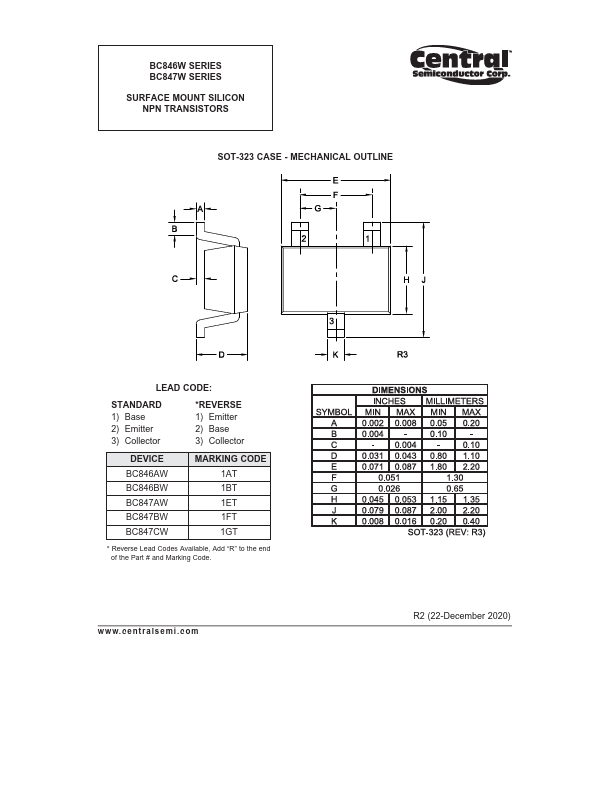

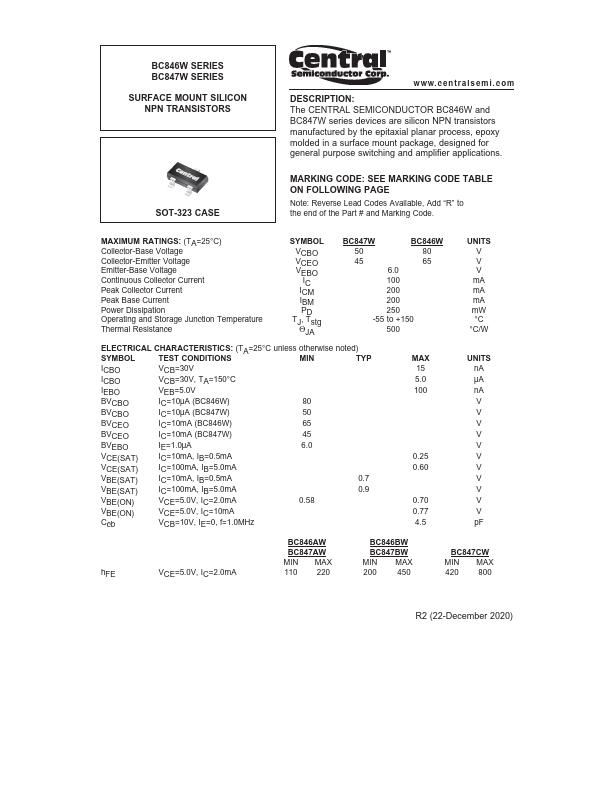

The CENTRAL SEMICONDUCTOR BC846W and BC847W series devices are silicon NPN transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
