Datasheet Details
| Part number | BC847A |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 521.52 KB |
| Description | NPN SILICON TRANSISTOR |
| Datasheet | BC847A BC846 Datasheet (PDF) |
|
|
Overview: BC846 SERIES BC847 SERIES BC848 SERIES SURFACE MOUNT SILICON NPN TRANSISTORS SOT-23 CASE w w w. c e n t r a l s e m i .
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC847A |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 521.52 KB |
| Description | NPN SILICON TRANSISTOR |
| Datasheet | BC847A BC846 Datasheet (PDF) |
|
|
|

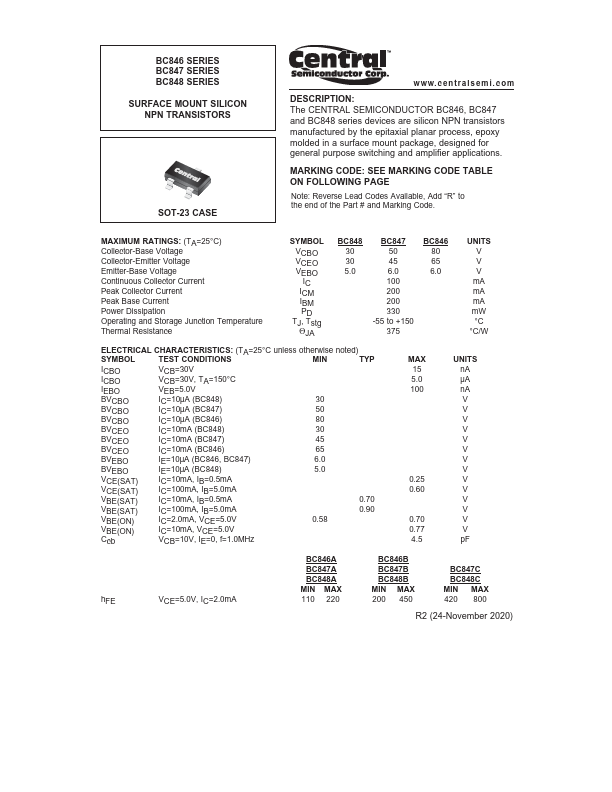

: The CENTRAL SEMICONDUCTOR BC846, BC847 and BC848 series devices are silicon NPN transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.
MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Collector Current Peak Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC ICM IBM PD TJ, Tstg ΘJA BC848 30 30 5.0 BC847 50 45 6.0 100 200 200 330 -55 to +150 375 BC846 80 65 6.0 UNITS V V V mA mA mA mW °C °C/W ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN TYP ICBO ICBO IEBO BVCBO BVCBO BVCBO BVCEO BVCEO BVCEO BVEBO BVEBO VCE(SAT) VCE(SAT) VBE(SAT) VBE(SAT) VBE(ON) VBE(ON) Ccb VCB=30V VCB=30V, TA=150°C VEB=5.0V IC=10µA (BC848) IC=10µA (BC847) IC=10µA (BC846) IC=10mA (BC848) IC=10mA (BC847) IC=10mA (BC846) IE=10µA (BC846, BC847) IE=10µA (BC848) IC=10mA, IB=0.5mA IC=100mA, IB=5.0mA IC=10mA, IB=0.5mA IC=100mA, IB=5.0mA IC=2.0mA, VCE=5.0V IC=10mA, VCE=5.0V VCB=10V, IE=0, f=1.0MHz 30 50 80 30 45 65 6.0 5.0 0.70 0.90 0.58 MAX 15 5.0 100 0.25 0.60 0.70 0.77 4.5 UNITS nA µA nA V V V V V V V V V V V V V V pF hFE VCE=5.0V, IC=2.0mA BC846A BC847A BC848A MIN MAX 110 220 BC846B BC847B BC848B MIN MAX 200 450 BC847C BC848C MIN MAX 420 800 R2 (24-November 2020) BC846 SERIES BC847 SERIES BC848 SERIES SURFACE MOUNT SILICON NPN TRANSISTORS SOT-23 CASE - MECHANICAL OUTLINE LEAD CODE: STANDARD 1) Base 2) Emitter 3) Collector *REVERSE 1) Emitter 2) Base 3) Collector DEVICE BC846A BC846B BC847A BC847B BC847C B
