BC847C datasheet by Central Semiconductor.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC847C |
|---|---|
| Datasheet | BC847C BC846 Datasheet (PDF) |
| File Size | 521.52 KB |
| Manufacturer | Central Semiconductor |
| Description | NPN SILICON TRANSISTOR |
|
|

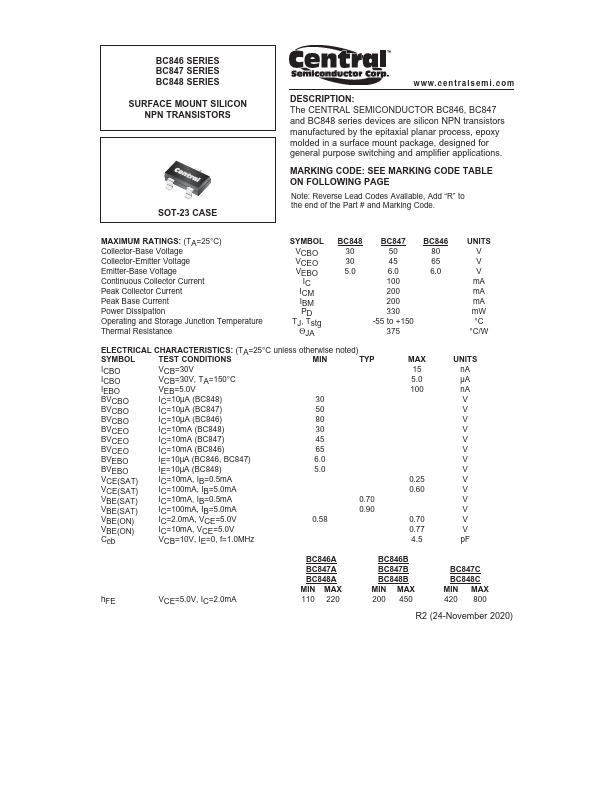

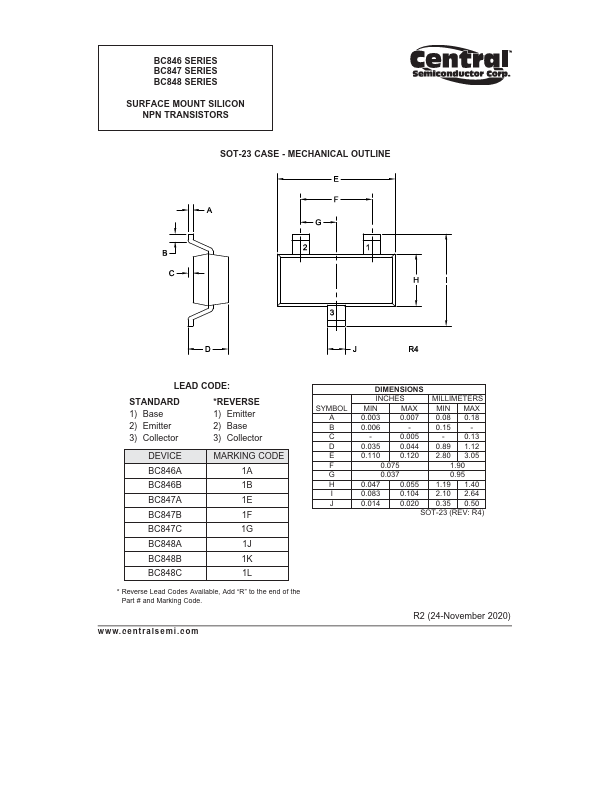

The CENTRAL SEMICONDUCTOR BC846, BC847 and BC848 series devices are silicon NPN transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BC847C | NPN Transistor | GME |
 |
BC847C | 100 mA NPN general-purpose transistors | NXP |
 |
BC847C | NPN General Purpose Amplifier | Fairchild Semiconductor |
 |
BC847C | NPN General Purpose Transistor | Rohm |
 |
BC847C | NPN Silicon AF Transistors | Infineon |
