| Part | BC848B |
|---|---|
| Description | NPN SILICON TRANSISTOR |
| Category | Transistor |
| Manufacturer | Central Semiconductor |
| Size | 521.52 KB |
Pins: 3
Max Operating Temp: 150 °C

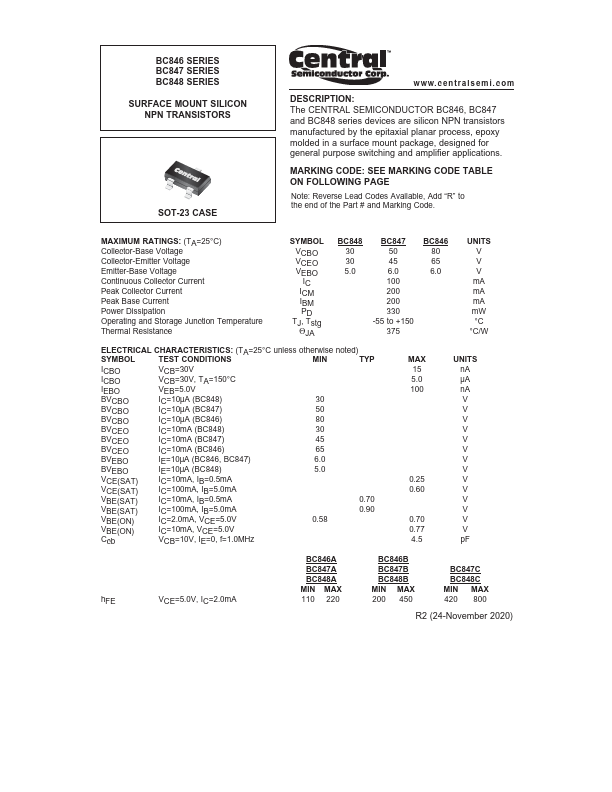

The CENTRAL SEMICONDUCTOR BC846, BC847 and BC848 series devices are silicon NPN transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
| Seller | Inventory | Price Breaks | Buy |
|---|---|---|---|
| Newark | 685 | 5+ : 0.217 USD 10+ : 0.132 USD 25+ : 0.115 USD 50+ : 0.098 USD |
View Offer |
| Newark | 0 | 3000+ : 0.039 USD 6000+ : 0.038 USD |
View Offer |
| Part Number | Manufacturer | Description |
|---|---|---|
| BC848BT | Infineon | NPN Silicon AF Transistors |
| BC848B | ROHM | NPN Transistor |
| BC848BW | SeCoS Halbleitertechnologie GmbH | NPN Transistor |
| BC848B | Micro Commercial Components | NPN Transistors |
| BC848BW | Semiware Semiconductor | NPN Plastic-Encapsulate Transistor |
