| Part number | BC857 |
|---|---|
| Download | BC857 Datasheet (PDF) |
| File Size | 429.09 KB |
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT PNP SILICON TRANSISTOR |
|
|
| Manufacturer | Part Number | Description |
|---|---|---|
Nexperia |
BC857 | PNP Transistor |
Multicomp |
BC857 | PNP Transistor |
SEMTECH |
BC857 | PNP Silicon General Purpose Transistors |
Continental Device India |
BC857 | SILICON PLANAR EPITAXIAL TRANSISTORS |
Galaxy Microelectronics |
BC857 | PNP Transistor |

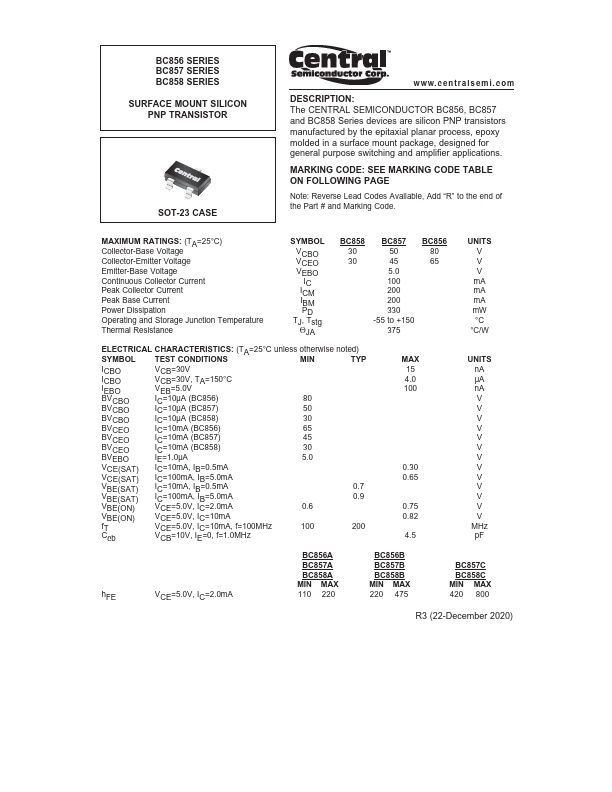

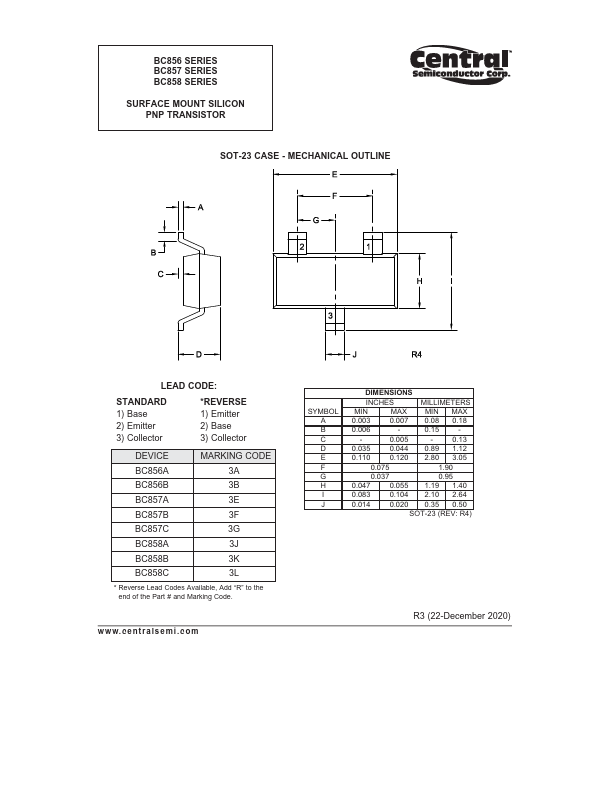

The CENTRAL SEMICONDUCTOR BC856, BC857 and BC858 Series devices are silicon PNP transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
