BC858B Datasheet PDF - Central Semiconductor SURFACE MOUNT PNP SILICON TRANSISTOR Specs

BC858B - SURFACE MOUNT PNP SILICON TRANSISTOR

This page provides the datasheet information for the BC858B, a member of the BC856 SURFACE MOUNT PNP SILICON TRANSISTOR family.

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR BC856, BC857 and BC858 Series types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.

Datasheet Details

Part number	BC858B
Manufacturer	Central Semiconductor
File Size	114.00 KB
Description	SURFACE MOUNT PNP SILICON TRANSISTOR
Datasheet	BC858B Datasheet

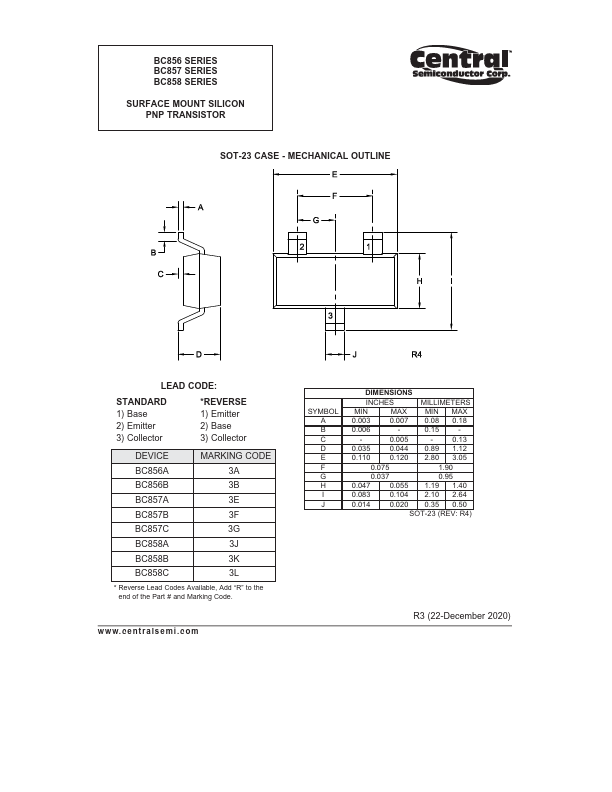

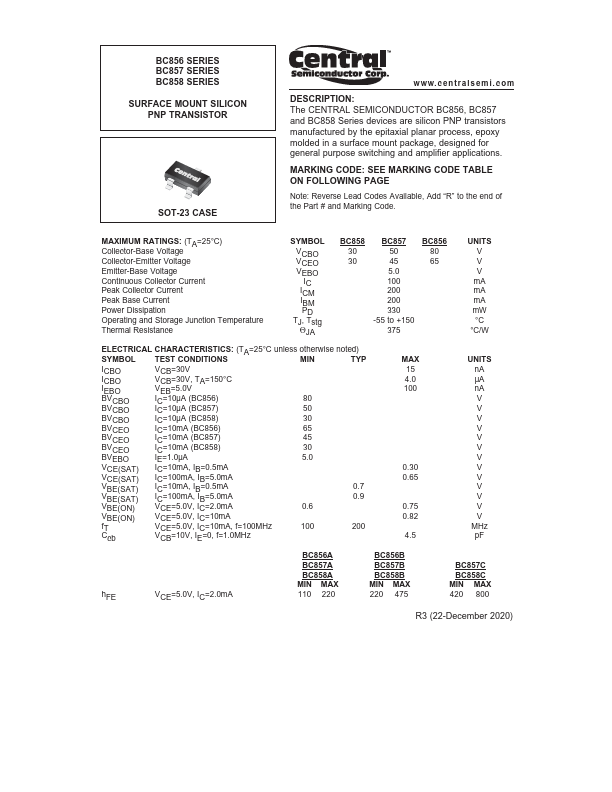

Additional preview pages of the BC858B datasheet.

📁 Similar Datasheet

BC858B - PNP Transistor (Multicomp)

BC858B - PNP Silicon AF Transistor (Infineon)

BC858B - PNP Silicon Epitaxial Transistors (Kingtronics)

BC858B - PNP Transistor (GME)

BC858B - PNP SMALL SIGNAL TRANSISTOR (DIODES)

BC858B - PNP General Purpose Transistor (Rohm)

BC858B - SMALL SIGNAL PNP TRANSISTORS (STMicroelectronics)

BC858B - PNP Silicon AF Transistors (Siemens Semiconductor Group)

BC858B - PNP Small Signal Transistor (Micro Commercial Components)

BC858B - SMD General Purpose PNP Transistors (Diotec Semiconductor)

Full PDF Text Transcription

Click to expand full text

BC856 SERIES BC857 SERIES BC858 SERIES SURFACE MOUNT PNP SILICON TRANSISTOR SOT-23 CASE CentralTM Semiconductor Corp. DESCRIPTION: The CENTRAL SEMICONDUCTOR BC856, BC857 and BC858 Series types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. MARKING CODE: PLEASE SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
