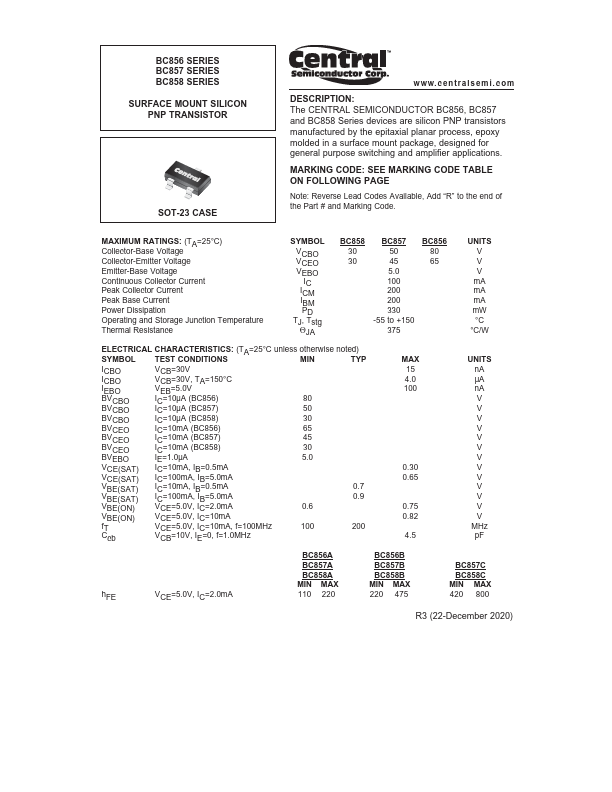

Overview: BC856 SERIES BC857 SERIES BC858 SERIES SURFACE MOUNT SILICON PNP TRANSISTOR SOT-23 CASE w w w. c e n t r a l s e m i .
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC858C |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 429.09 KB |
| Description | SURFACE MOUNT PNP SILICON TRANSISTOR |
| Datasheet | BC858C BC856 Datasheet (PDF) |
|
|
|
: The CENTRAL SEMICONDUCTOR BC856, BC857 and BC858 Series devices are silicon PNP transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.

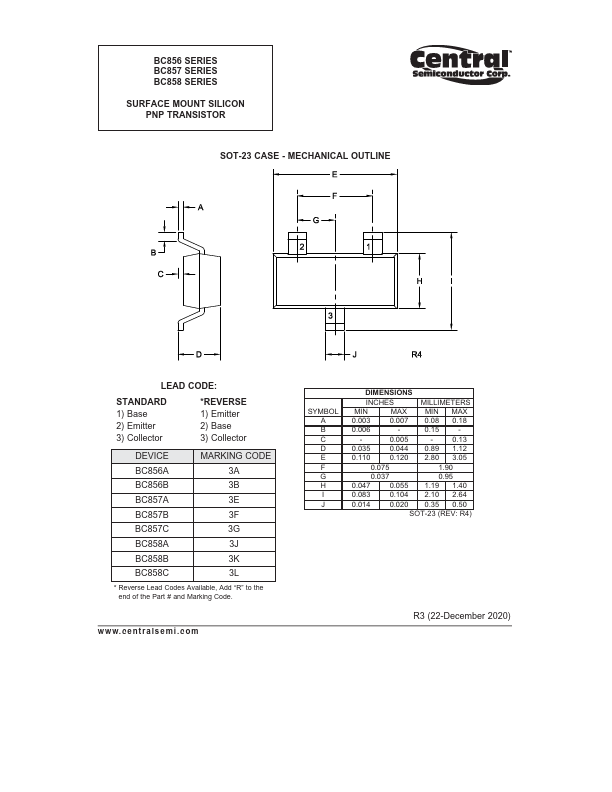

MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Collector Current Peak Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC ICM IBM PD TJ, Tstg ΘJA BC858 30 30 BC857 50 45 5.0 100 200 200 330 -55 to +150 375 BC856 80 65 UNITS V V V mA mA mA mW °C °C/W ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN TYP ICBO VCB=30V ICBO VCB=30V, TA=150°C IEBO VEB=5.0V BVCBO IC=10µA (BC856) 80 BVCBO IC=10µA (BC857) 50 BVCBO IC=10µA (BC858) 30 BVCEO IC=10mA (BC856) 65 BVCEO IC=10mA (BC857) 45 BVCEO IC=10mA (BC858) 30 BVEBO IE=1.0µA 5.0 VCE(SAT) IC=10mA, IB=0.5mA VCE(SAT) IC=100mA, IB=5.0mA VBE(SAT) IC=10mA, IB=0.5mA 0.7 VBE(SAT) IC=100mA, IB=5.0mA 0.9 VBE(ON) VCE=5.0V, IC=2.0mA 0.6 VBE(ON) VCE=5.0V, IC=10mA fT VCE=5.0V, IC=10mA, f=100MHz 100 200 Ccb VCB=10V, IE=0, f=1.0MHz MAX 15 4.0 100 0.30 0.65 0.75 0.82 4.5 UNITS nA µA nA V V V V V V V V V V V V V MHz pF hFE VCE=5.0V, IC=2.0mA BC856A BC857A BC858A MIN MAX 110 220 BC856B BC857B BC858B MIN MAX 220 475 BC857C BC858C MIN MAX 420 800 R3 (22-December 2020) BC856 SERIES BC857 SERIES BC858 SERIES SURFACE MOUNT SILICON PNP TRANSISTOR SOT-23 CASE - MECHANICAL OUTLINE LEAD CODE: STANDARD 1) Base 2) Emitter 3) Collector *REVERSE 1) Emitter 2) Base 3) Collector DEVICE MARKING
