BCW31 - SURFACE MOUNT NPN SILICON TRANSISTOR

General Description

The CENTRAL SEMICONDUCTOR BCW31, manufactured in the popular SOT-23 Surface Mount package, is an NPN General Purpose Switching and Amplification Transistor, suitable for applications requiring collector currents up to 100mA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCW31 NPN general purpose transistors NXP
BCW31 NPN General Purpose Amplifier Fairchild Semiconductor
BCW31 NPN General Purpose Amplifier GME
BCW31 EPITAXIAL PLANAR NPN TRANSISTOR KEC
BCW31 GENERAL PURPOSE TRANSISTOR Motorola

Other Datasheets by Central Semiconductor

Part Number Description
BCW61B PNP Transistor
BCW61C PNP SILICON TRANSISTOR
BCW61D PNP SILICON TRANSISTOR
BCW65 SILICON NPN TRANSISTORS
BCW65A SILICON NPN TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

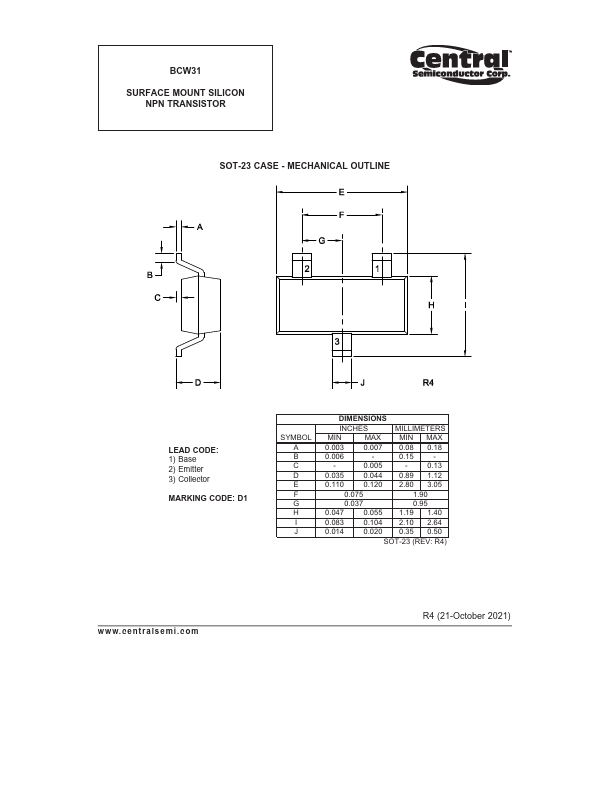

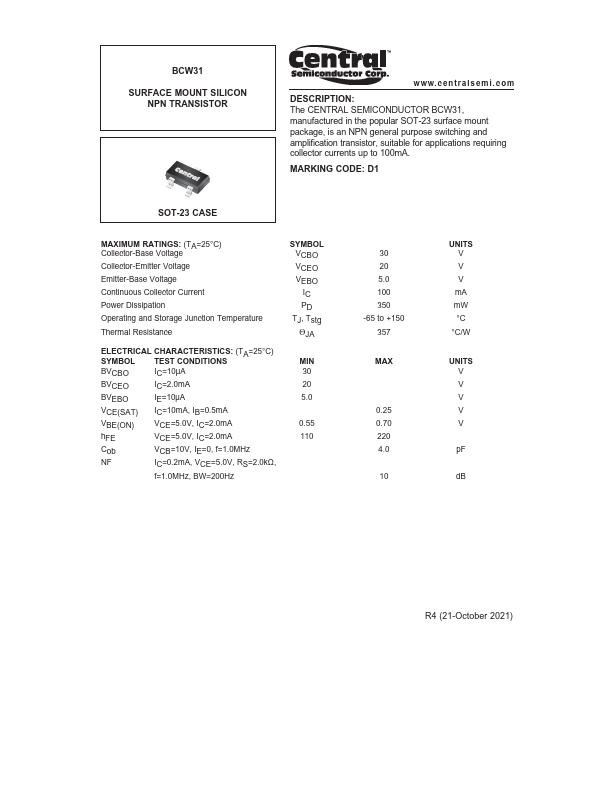

BCW31 SURFACE MOUNT NPN SILICON TRANSISTOR w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR BCW31, manufactured in the popular SOT-23 Surface Mount package, is an NPN General Purpose Switching and Amplification Transistor, suitable for applications requiring collector currents up to 100mA. MARKING CODE: D1 SOT-23 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA ELECTRICAL CHARACTERISTICS: (TA=25°C) SYMBOL TEST CONDITIONS MIN BVCBO IC=10μA 30 BVCEO IC=2.0mA 20 BVEBO IE=10μA 5.0 VCE(SAT) IC=10mA, IB=0.5mA VBE(ON) VCE=5.0V, IC=2.0mA 0.
