Overview: CMOD2004 SURFACE MOUNT HIGH VOLTAGE SILICON SWITCHING DIODE w w w. c e n t r a l s e m i .
| Part number | CMOD2004 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 361.51 KB |
| Description | SURFACE MOUNT HIGH VOLTAGE SILICON SWITCHING DIODE |
| Datasheet | CMOD2004_CentralSemiconductor.pdf |
|
|
|
: The CENTRAL SEMICONDUCTOR CMOD2004 type is a high voltage silicon switching diode manufactured by the epitaxial planar process, epoxy molded in a ULTRAmini™ surface mount package, designed for applications requiring high voltage capability.

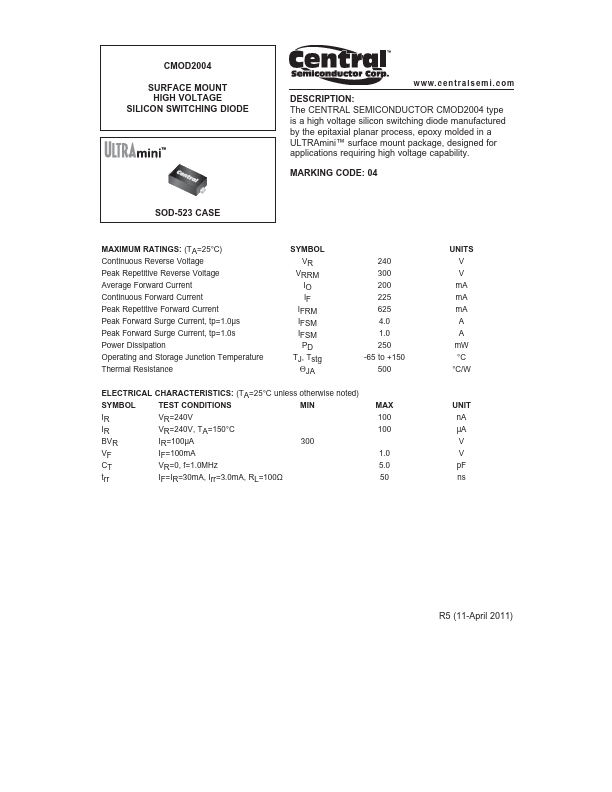

MARKING CODE: 04 SOD-523 CASE MAXIMUM RATINGS: (TA=25°C) Continuous Reverse Voltage Peak Repetitive Reverse Voltage Average Forward Current Continuous Forward Current Peak Repetitive Forward Current Peak Forward Surge Current, tp=1.0μs Peak Forward Surge Current, tp=1.0s Power Dissipation Operating and Storage Junction Temperature Thermal Resistance ELECTRICAL SYMBOL IR IR BVR VF CT trr SYMBOL VR VRRM IO IF IFRM IFSM IFSM PD TJ, Tstg ΘJA 240 300 200 225 625 4.0 1.0 250 -65 to +150 500 UNITS V V mA mA mA A A mW °C °C/W CHARACTERISTICS: (TA=25°C unless otherwise noted) TEST CONDITIONS MIN VR=240V VR=240V, TA=150°C IR=100μA 300 IF=100mA VR=0, f=1.0MHz IF=IR=30mA, Rec.
to 3.0mA, RL=100Ω MAX 100 100 1.0 5.0 50 UNIT nA μA V V pF ns R3 (25-January 2010) ..
