CMOD2004 Datasheet PDF

FEATURES

● High Voltage

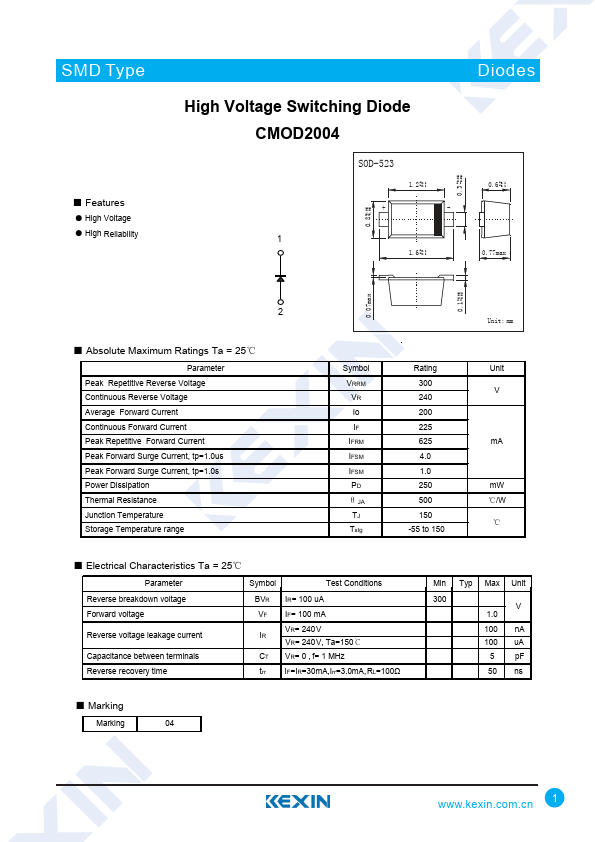

● High Reliability TransDisiotodress High Voltage Switching Diode CMOD2004 SOD-523 1.2 +0.1 -0.1 + - +0.05 0.3 -0.05 0.6 +0.1 -0.1 +0.05 0.8 -0.05 1 1.6 +0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max 2
●

ABSOLUTE MAXIMUM RATINGS

Ta = 25℃ Parameter Peak Repetitive Reverse Voltage Continuous Reverse Voltage Average Forward Current Continuous Forward Current Peak Repetitive Forward Current Peak Forward Surge Current, tp=1.0us Peak Forward Surge Current, tp=1.0s Power Dissipation Thermal Resistance Junction Temperature Storage Temperature range Unit: mm Symbol VRRM VR Io IF IFRM IFSM IFSM PD θJA TJ Tstg Rating 300 240 200 225 625 4.0 1.0 250 500 150 -55 to 150 Unit V mA mW ℃/W ℃
●

ELECTRICAL CHARACTERISTICS

Ta = 25℃ Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Capacitance between terminals Reverse recovery time Symbol Test Conditions BVR IR= 100 uA VF IF= 100 mA VR= 240 V IR VR= 240 V, Ta=150¥ CT VR= 0 , f= 1 MHz trr IF=IR=30mA,Irr=...
