CZT3055 - SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS

This page provides the datasheet information for the CZT3055, a member of the CZT2955 SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS family.

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR CZT2955 and CZT3055 types are surface mount epoxy molded complementary silicon transistors manufactured by the epitaxial base process, designed for surface mounted power amplifier applications up to 6.0 amps.

📥 Download Datasheet

Datasheet preview – CZT3055

Datasheet Details

Part number CZT3055
Manufacturer Central Semiconductor
File Size 301.16 KB
Description SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS
Datasheet download datasheet CZT3055 Datasheet

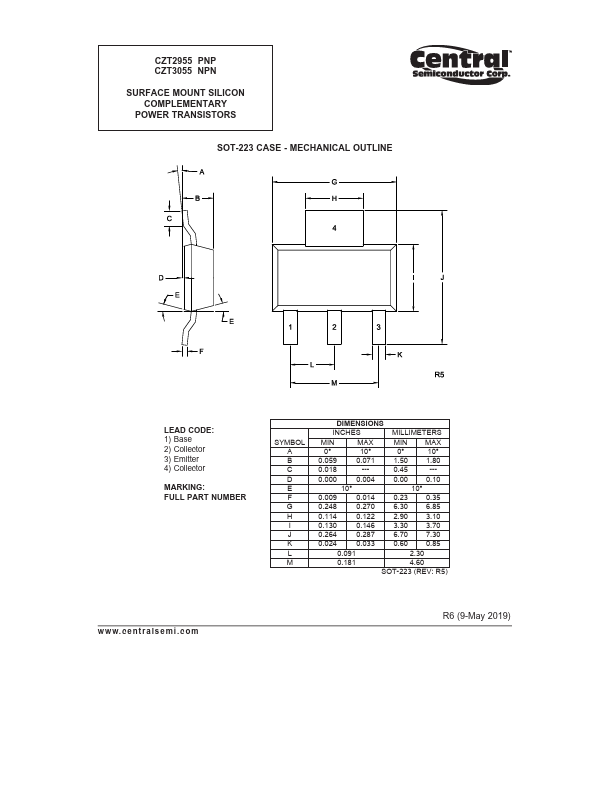

Additional preview pages of the CZT3055 datasheet.

📁 Similar Datasheet

  • CZT3055 - NPN Silicon Power Transistor (Kexin)
  • CZT3055 - TRANSISTOR (TY Semiconductor)
  • CZT3019 - NPN SILICON TRANSISTOR (Central Semiconductor Corp)
  • CZT31C - SURFACE MOUNT SILICON COMPLEMENTARY POWER TRANSISTORS (Central Semiconductor Corp)
  • CZT31C-C - NPN Silicon Medium Power Transistor (SeCoS)
  • CZT32C - SURFACE MOUNT SILICON COMPLEMENTARY POWER TRANSISTORS (Central Semiconductor Corp)
  • CZT32C - PNP Silicon Medium Power Transistor (SeCoS)
  • CZT3904 - COMPLEMENTARY SILICON TRANSISTORS (Central Semiconductor Corp)
  • CZT3904NPN - COMPLEMENTARY SILICON TRANSISTORS (Central Semiconductor Corp)
  • CZT3906 - COMPLEMENTARY SILICON TRANSISTORS (Central Semiconductor Corp)
Other Datasheets by Central Semiconductor
  • CZT3120 - SURFACE MOUNT NPN SILICON TRANSISTOR
  • CZT3150 - SURFACE MOUNT NPN SILICON TRANSISTOR
  • CZT122 - TRANSISTOR
  • CZT127 - TRANSISTOR
  • CZT2222A - SURFACE MOUNT SILICON NPN TRANSISTOR
  • CZT2680 - SURFACE MOUNT NPN SILICON TRANSISTOR
  • CZT2955 - SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS
  • CZT5401E - SURFACE MOUNT PNP SILICON TRANSISTOR

Full PDF Text Transcription

Click to expand full text

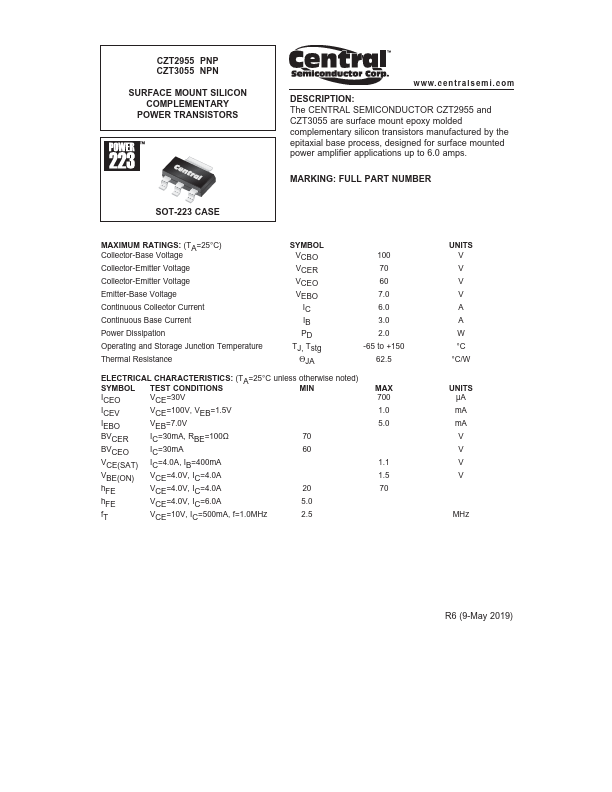

CZT2955 PNP CZT3055 NPN SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR CZT2955 and CZT3055 types are surface mount epoxy molded complementary silicon transistors manufactured by the epitaxial base process, designed for surface mounted power amplifier applications up to 6.0 amps. MARKING: FULL PART NUMBER SOT-223 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Continuous Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCER VCEO VEBO IC IB PD TJ, Tstg ΘJA 100 70 60 7.0 6.0 3.0 2.0 -65 to +150 62.
