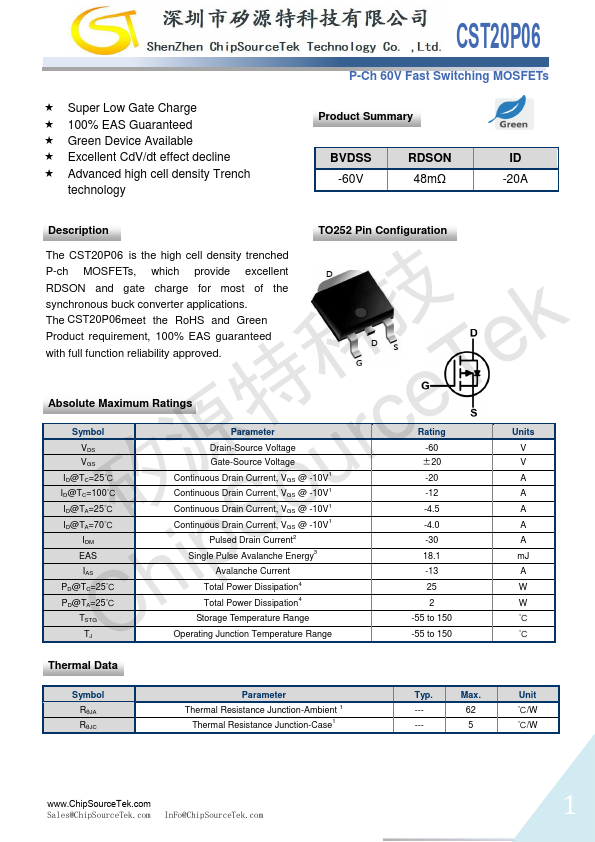

CST20P06
CST20P06 is P-Ch 60V Fast Switching MOSFETs manufactured by ChipSourceTek.
- Super Low Gate Charge
- 100% EAS Guaranteed
- Green Device Available
- Excellent Cd V/dt effect decline
- Advanced high cell density Trench technology
P-Ch 60V Fast Switching MOSFETs
Product Summary
BVDSS -60V
RDSON 48mΩ
ID -20A
Description
TO252 Pin Configuration
The CST20P06 is the high cell density trenched
P-ch MOSFETs, which provide excellent
RDSON and gate charge for most of the synchronous buck converter applications. The CST20P06meet the Ro HS and Green
技 k Product requirement, 100% EAS guaranteed with full function reliability approved.
科 Te...
