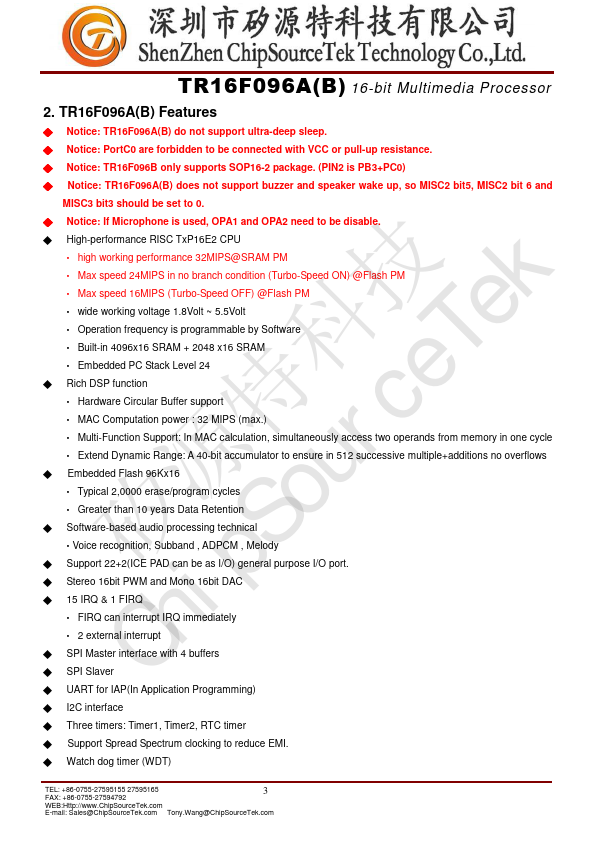

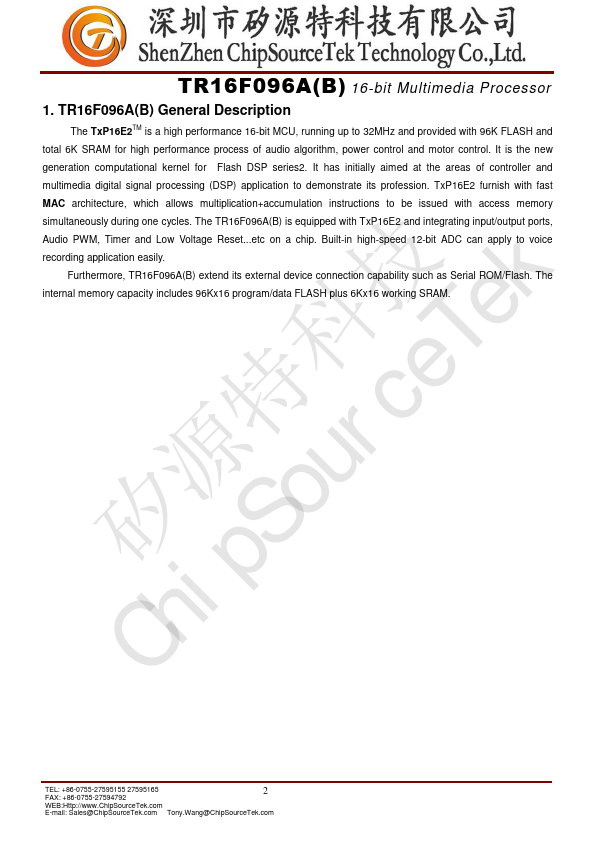

Description The Tx P16E2TM is a high performance 16-bit MCU, running up to 32MHz and provided with 96K FLASH and total 6K SRAM for high performance process of audio algorithm, power control and motor control. It is the new generation putational kernel for Flash DSP series2. It has initially aimed at the areas of controller and multimedia digital signal processing (DSP) application to demonstrate its profession. Tx P16E2 furnish with fast MAC architecture, which allows multiplication+accumulation instructions to be issued with access memory simultaneously during one cycles. The TR16F096A(B) is equipped with Tx P16E2 and integrating input/output ports, Audio PWM, Timer and Low Voltage Reset...etc on a chip. Built-in high-speed 12-bit ADC can apply to voice recording application easily. Furthermore, TR16F096A(B) extend its external device connection capability such as Serial ROM/Flash. The internal memory capacity includes 96Kx16 program/data FLASH plus 6Kx16 working SRAM. Chip S矽ou源rc特e T科ek技 TEL: +86-0755-27595155 27595165 FAX: +86-0755-27594792 WEB:Http://.Chip Source Tek. E-mail: Sales@Chip Source Tek. Tony.Wang@Chip Source Tek. Chip S矽ou源rc特e T科ek技 TR16F096A(B) 16-bit Multimedia Processor 2. TR16F096A(B) Features - Notice: TR16F096A(B) do not support ultra-deep sleep. - Notice: Port C0 are forbidden to be connected with VCC or pull-up resistance. - Notice: TR16F096B only supports SOP16-2 package. (PIN2 is PB3+PC0) - Notice: TR16F096A(B) does not support buzzer and speaker wake up, so MISC2 bit5, MISC2 bit 6 and MISC3 bit3 should be set to 0. - Notice: If Microphone is used, OPA1 and OPA2 need to be disable. - High-performance RISC Tx P16E2 CPU ‧ high working performance 32MIPS@SRAM PM ‧ Max speed 24MIPS in no branch condition (Turbo-Speed ON) @Flash PM ‧ Max speed 16MIPS (Turbo-Speed OFF) @Flash PM ‧ wide working voltage 1.8Volt ~ 5.5Volt ‧ Operation frequency is programmable by Software ‧ Built-in 4096x16 SRAM + 2048 x16 SRAM ‧ Embedded PC Stack Level 24 - Rich DSP...
