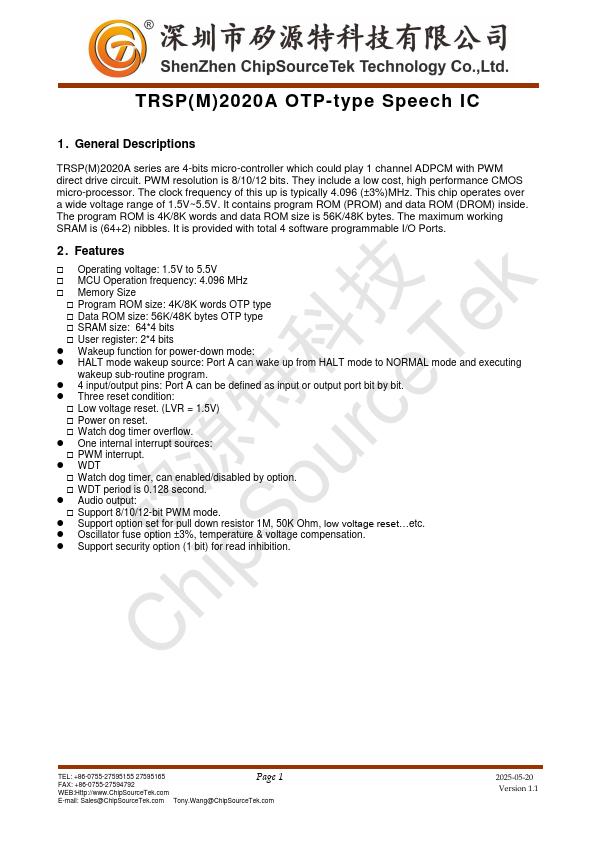

TRSP(M)2020A OTP-type Speech IC 1 . General Descriptions TRSP(M)2020A series are 4-bits micro-controller which could play 1 channel ADPCM with PWM direct drive circuit. PWM resolution is 8/10/12 bits. They include a low cost, high performance CMOS micro-processor. The clock frequency of this up is typically 4.096 (±3%)MHz. This chip operates over a wide voltage range of 1.5V~5.5V. It contains program ROM (PROM) and data ROM (DROM) inside. The program ROM is 4K/8K words and data ROM size is 56K/48K bytes. The maximum working SRAM is (64+2) nibbles. It is provided with total 4 software programmable I/O Ports. 2 . Features  Operating voltage: 1.5V to 5.5V  MCU Operation frequency: 4.096 MHz  Memory Size 技 k  Program ROM size: 4K/8K words OTP type  Data ROM size: 56K/48K bytes OTP type  SRAM size: 64- 4 bits e  User register: 2- 4 bits - Wakeup function for power-down mode: - HALT mode wakeup source: Port A can wake up from HALT mode to NORMAL mode and executing 科 T wakeup sub-routine program. - 4 input/output pins: Port A can be defined as input or output port bit by bit. e - Three reset condition:  Low voltage reset. (LVR = 1.5V)  Power on reset. 特 c  Watch dog timer overflow. r - One internal interrupt sources:  PWM interrupt. - WDT 源 u  Watch dog timer, can enabled/disabled by option.  WDT period is 0.128 second. - Audio output: o  Support 8/10/12-bit PWM mode. - Support option set for pull down resistor 1M, 50K Ohm, low voltage reset…etc. - Oscillator fuse option ±3%, temperature & voltage pensation. 矽Chip S - Support security option (1 bit) for read inhibition. TEL: +86-0755-27595155 27595165 Page 1 FAX: +86-0755-27594792 WEB:Http://.Chip Source Tek. E-mail: Sales@Chip Source Tek. Tony.Wang@Chip Source Tek. 2025-05-20 Version 1.1 TRSP(M)2020A OTP-type Speech IC 3 . Packaging and Pads Information 3.1...
