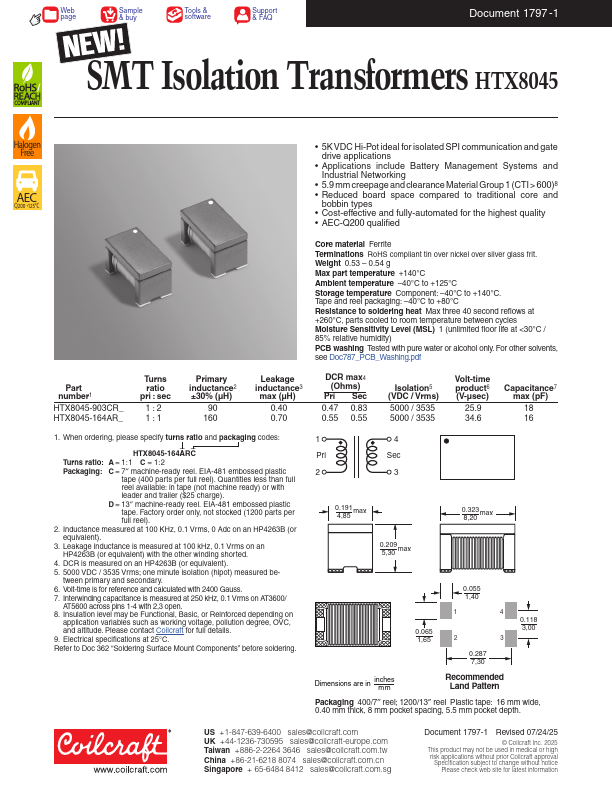

Document 1797 -1
SMT Isolation Transformers HTX8045
Halogen Free
AEC
Q200 +125°C
- 5K VDC Hi-Pot ideal for isolated SPI munication and gate drive applications
- Applications include Battery Management Systems and Industrial Networking
- 5.9 mm creepage and clearance Material Group 1 (CTI > 600)8
- Reduced board space pared to traditional core and bobbin types
- Cost-effective and fully-automated for the highest quality
- AEC-Q200 qualified
Core material Ferrite Terminations RoHS pliant tin over nickel over silver glass frit. Weight 0.53
- 0.54 g Max part temperature +140°C Ambient temperature
- 40°C to +125°C Storage...
