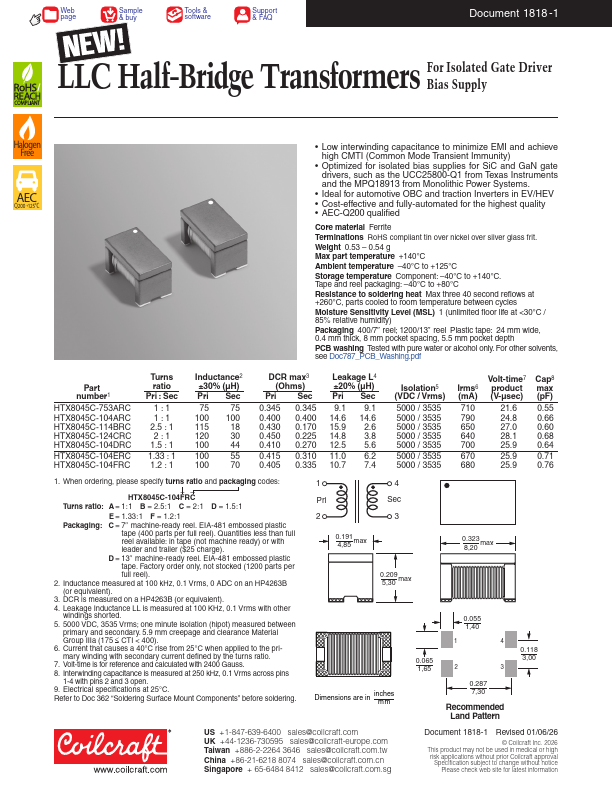

Document 1818 -1
LLC
Half-Bridge
Transformers
For Isolated Bias Supply
Gate
Driver
Halogen Free
AEC
Q200 +125°C
- Low interwinding capacitance to minimize EMI and achieve high CMTI (mon Mode Transient Immunity)
- Optimized for isolated bias supplies for SiC and GaN gate drivers, such as the UCC25800-Q1 from Texas Instruments and the MPQ18913 from Monolithic Power Systems.
- Ideal for automotive OBC and traction Inverters in EV/HEV
- Cost-effective and fully-automated for the highest quality
- AEC-Q200 qualified
Core material Ferrite
Terminations RoHS pliant tin over nickel over silver glass frit.
Weight 0.53
- 0.54...
