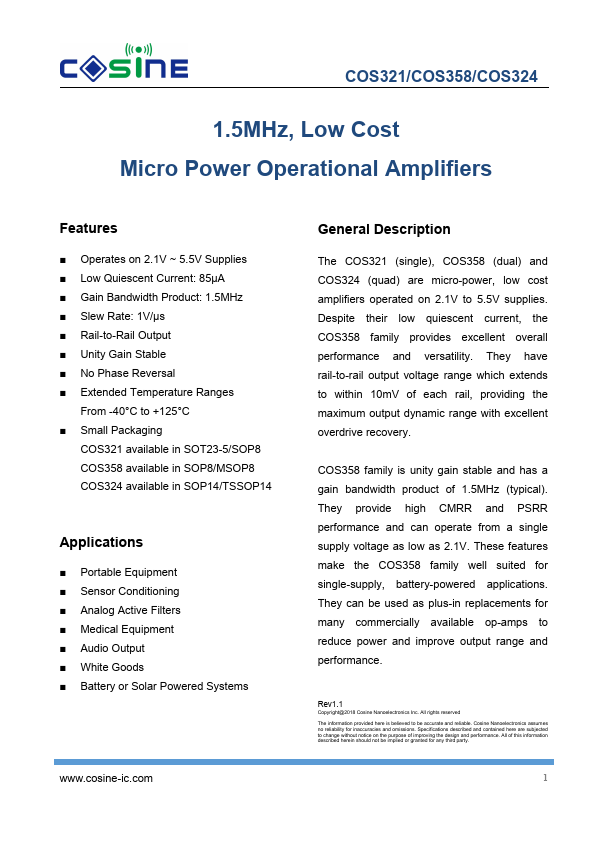

COS358 Overview
The COS321 (single), COS358 (dual) and COS324 (quad) are micro-power, low cost amplifiers operated on 2.1V to 5.5V supplies. Despite their low quiescent current, the COS358 family provides excellent overall performance and versatility. They have rail-to-rail output voltage range which extends to within 10mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery.
COS358 Key Features
- Operates on 2.1V ~ 5.5V Supplies
- Low Quiescent Current: 85μA
- Gain Bandwidth Product: 1.5MHz
- Slew Rate: 1V/µs
- Rail-to-Rail Output
- Unity Gain Stable
- No Phase Reversal
- Extended Temperature Ranges
- Small Packaging
