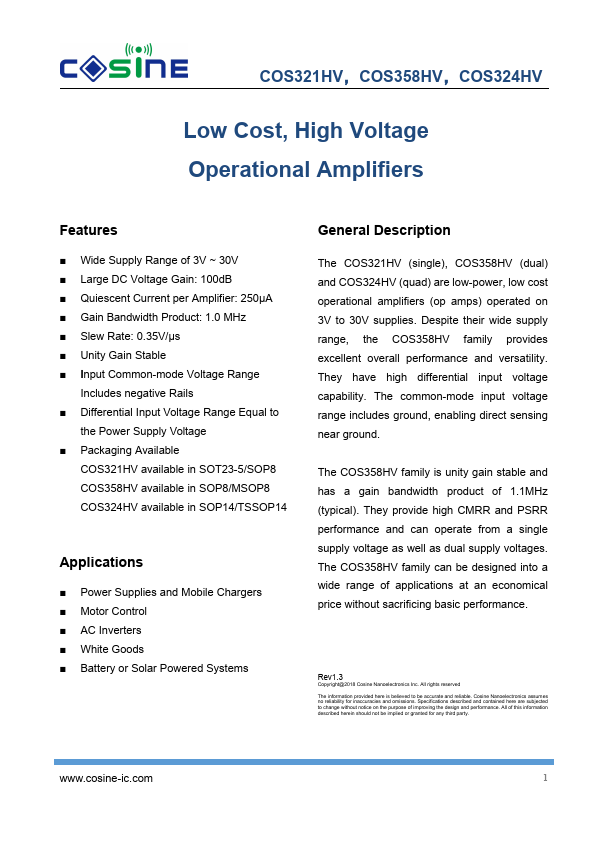

COS358HV Overview
The COS321HV (single), COS358HV (dual) and COS324HV (quad) are low-power, low cost operational amplifiers (op amps) operated on 3V to 30V supplies. Despite their wide supply range, the COS358HV family provides excellent overall performance and versatility. They have high differential input voltage capability.
COS358HV Key Features
- Wide Supply Range of 3V ~ 30V
- Large DC Voltage Gain: 100dB
- Quiescent Current per Amplifier: 250μA
- Gain Bandwidth Product: 1.0 MHz
- Slew Rate: 0.35V/µs
- Unity Gain Stable
- Input mon-mode Voltage Range
- Packaging Available
