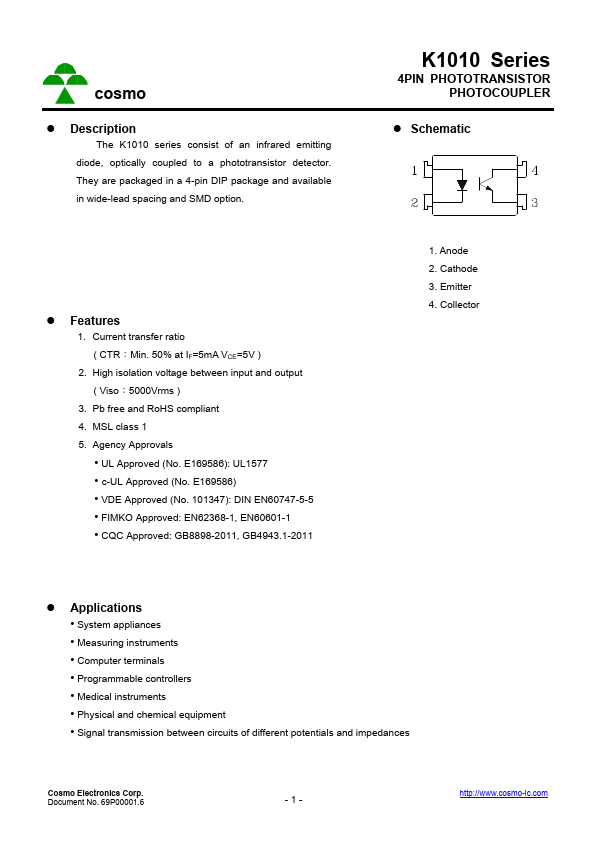

K1010C
Description
The K1010 series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.
- Features
1. Current transfer ratio ( CTR：Min. 50% at IF=5m A VCE=5V )
2. High isolation voltage between input and output ( Viso：5000Vrms )
3. Pb free and Ro HS pliant 4. MSL class 1 5. Agency Approvals
- UL Approved (No. E169586): UL1577
- c-UL Approved (No. E169586)
- VDE Approved (No. 101347): DIN EN60747-5-5
- FIMKO Approved: EN62368-1, EN60601-1
- CQC Approved: GB8898-2011, GB4943.1-2011
K1010 Series
4PIN PHOTOTRANSISTOR PHOTOCOUPLER
- Schematic
1. Anode 2. Cathode 3. Emitter 4. Collector
- Applications
- System appliances
- Measuring instruments
- puter terminals
- Programmable controllers
- Medical instruments
- Physical and chemical equipment
- Signal transmission between circuits of different potentials and impedances
Cosmo Electronics Corp. Document No....
