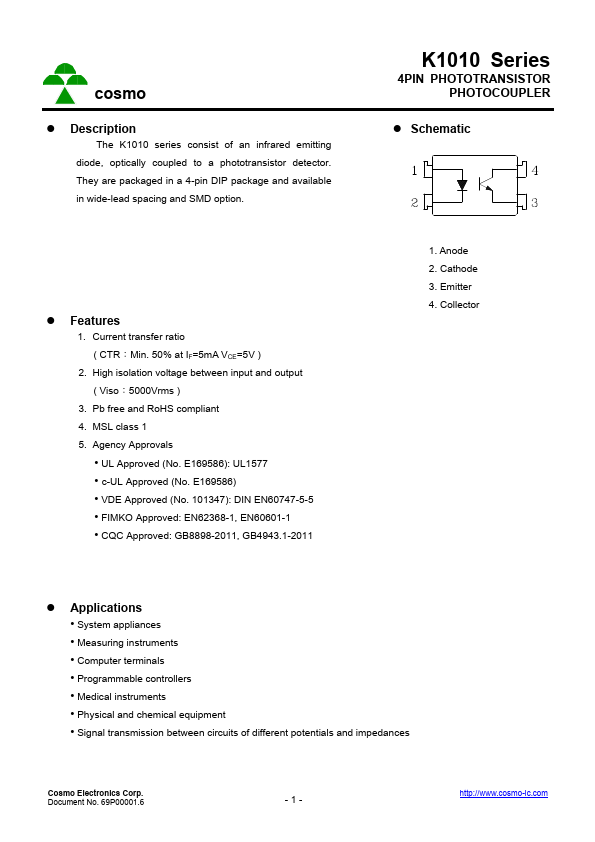

K1010E Datasheet 4PIN PHOTOTRANSISTOR PHOTOCOUPLER

Manufacturer: Cosmo

Download the K1010E datasheet PDF. This datasheet also includes the K1010 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (K1010-Cosmo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number K1010E
Manufacturer Cosmo
File Size 304.39 KB
Description 4PIN PHOTOTRANSISTOR PHOTOCOUPLER
Download Download datasheet K1010E Download (PDF)

General Description

The K1010 series consist of an infrared emitting diode, optically coupled to a phototransistor detector.

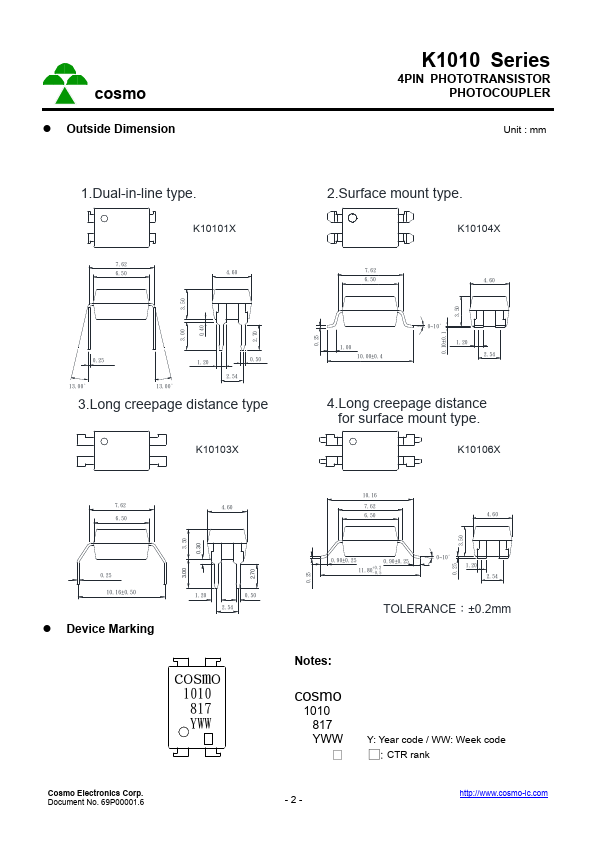

They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Overview

cosmo .

Key Features

  • s 1. Current transfer ratio ( CTR：Min. 50% at IF=5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1.
  • CQC Approved: GB8898-2011, GB4943.1-2011 K1010 Series 4PIN.
