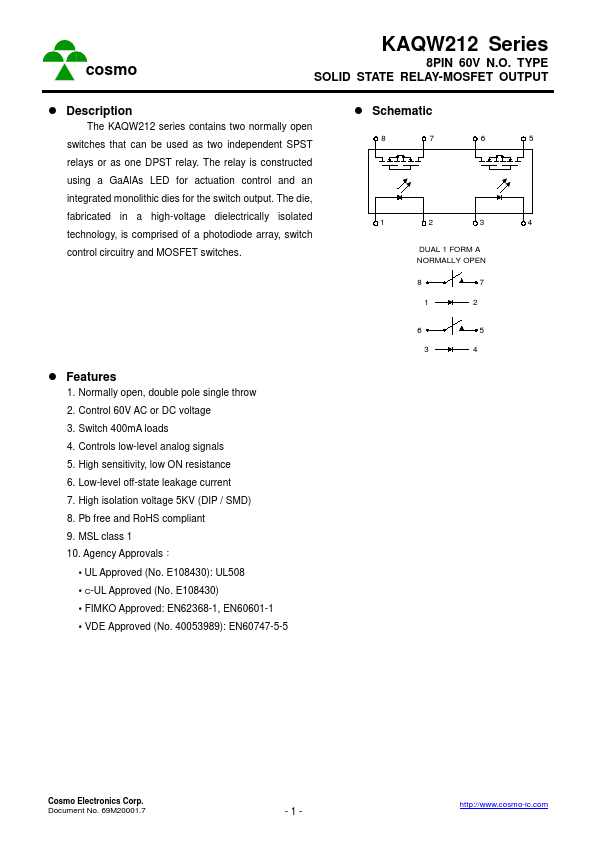

KAQW212 Description
The KAQW212 series contains two normally open switches that can be used as two independent SPST Schematic 8 7 6 5 relays or as one DPST relay. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is prised of a photodiode array, switch control circuitry and MOSFET switches.
KAQW212 Key Features
- UL Approved (No. E108430): UL508
- C-UL Approved (No. E108430)
- FIMKO Approved: EN62368-1, EN60601-1
- VDE Approved (No. 40053989): EN60747-5-5

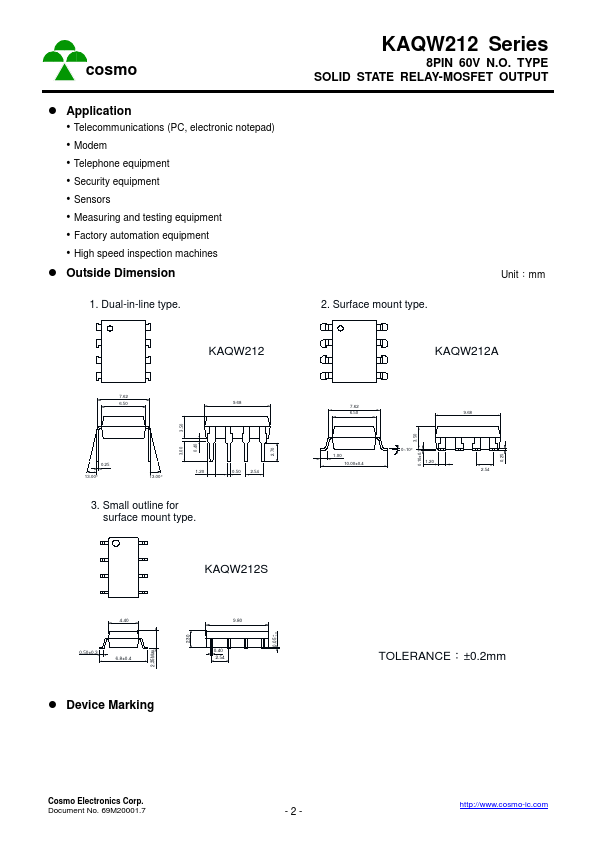

- Application
- Telemunications (PC, electronic notepad)
- Telephone equipment
- Security equipment
- Sensors
- Measuring and testing equipment
