KAQW212S - SOLID STATE RELAY

Download the KAQW212S datasheet PDF. This datasheet also covers the KAQW212 variant, as both devices belong to the same solid state relay family and are provided as variant models within a single manufacturer datasheet.

General Description

The KAQW212 series contains two normally open switches that can be used as two independent SPST

relays or as one DPST relay.

integrated monolithic dies for the switch output.

Key Features

  • s 1. Normally open, double pole single throw 2. Control 60V AC or DC voltage 3. Switch 400mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
  • UL Approved (No. E108430): UL508.
  • C-UL Approved (No. E108430).
  • FIMKO Approved: EN62368-1, EN60601-1.
  • VDE Approved (No. 40053989): EN60747-5-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KAQW212-Cosmo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KAQW212S
Manufacturer Cosmo
File Size 405.39 KB
Description SOLID STATE RELAY
Datasheet download datasheet KAQW212S Datasheet

Full PDF Text Transcription for KAQW212S (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for KAQW212S. For precise diagrams, and layout, please refer to the original PDF.

cosmo KAQW212 Series 8PIN 60V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Description The KAQW212 series contains two normally open switches that can be used as two indep...

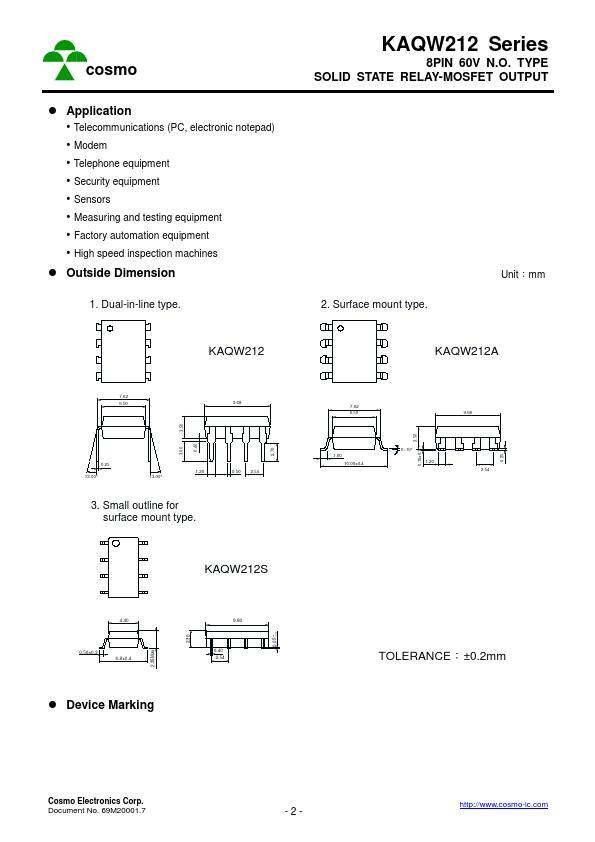

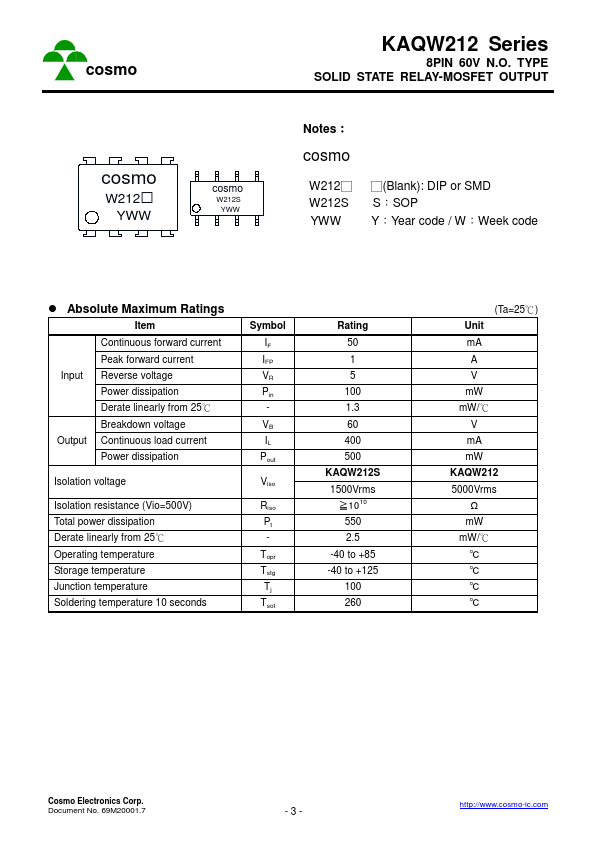

View more extracted text

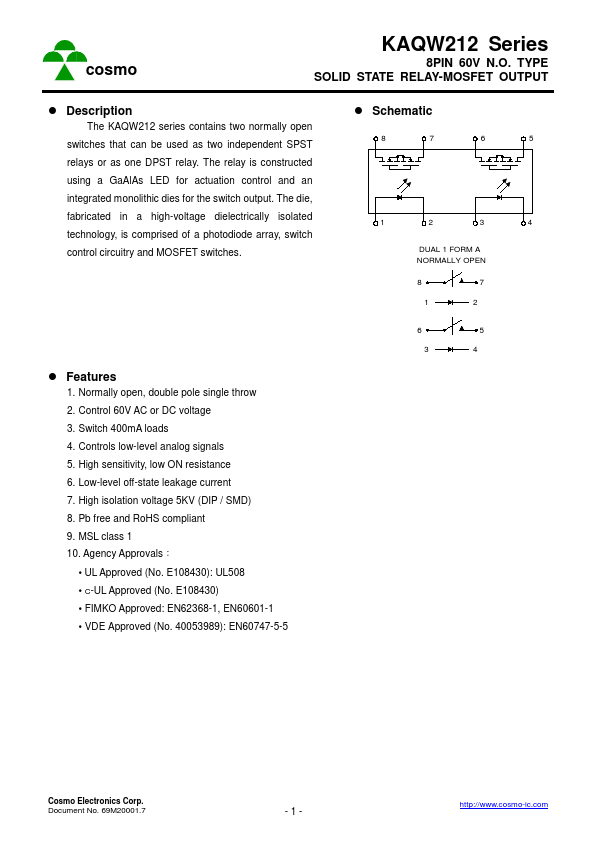

ries contains two normally open switches that can be used as two independent SPST  Schematic 8 7 6 5 relays or as one DPST relay. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches. 1 2 3 4 DUAL 1 FORM A NORMALLY OPEN 8 7 1 2  Features 1. Normally open, double pole single throw 2. Control 60V AC or DC voltage 3. Switch 400mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON res
