Cosmo KAQW614

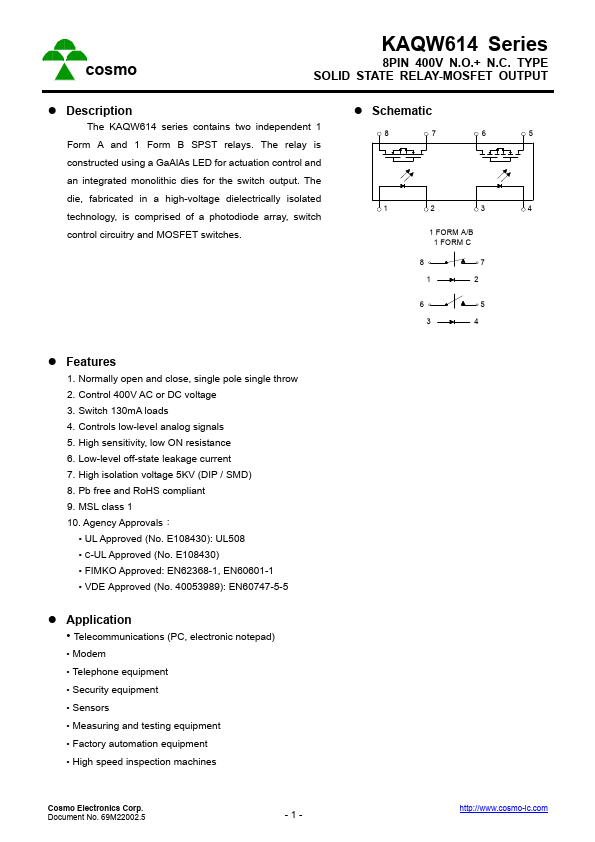

The KAQW614 series contains two independent 1 Form A and 1 Form B SPST relays. The relay is Schematic 8 7 6 5 constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch 1 2 3 4 control circuitry and MOSFET switches.| Part No. | KAQW614 |
|---|---|
| Datasheet | KAQW614 Download |
| Manufacturer |  Cosmo |
| Description | SOLID STATE RELAY |
| Buy | Stock & Price |
DESCRIPTION
The relay is● Schematic 8 7 6 5 constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. 1 FORM A/B 1 FORM C 8 7 1 2 6 5 3 4
●
FEATURES
1. Normally open and close, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：● UL Approved (No. E108430): UL508
● C-UL Approved (No. E108430)
● FIMKO Approved: EN62368-1, EN60601-1
● VDE Approved (No. 40053989): EN60747-5-5
● Application
● Telecommunications (PC, electronic notepad)
● Modem
● Telephone equipment
● Security equipment
● Sensors
● Measuring and testing equipment
● Factory automation equipment
● High speed inspection machines Cosmo Electronics Corp. Document No. 69M22002.5 -1- cosmo

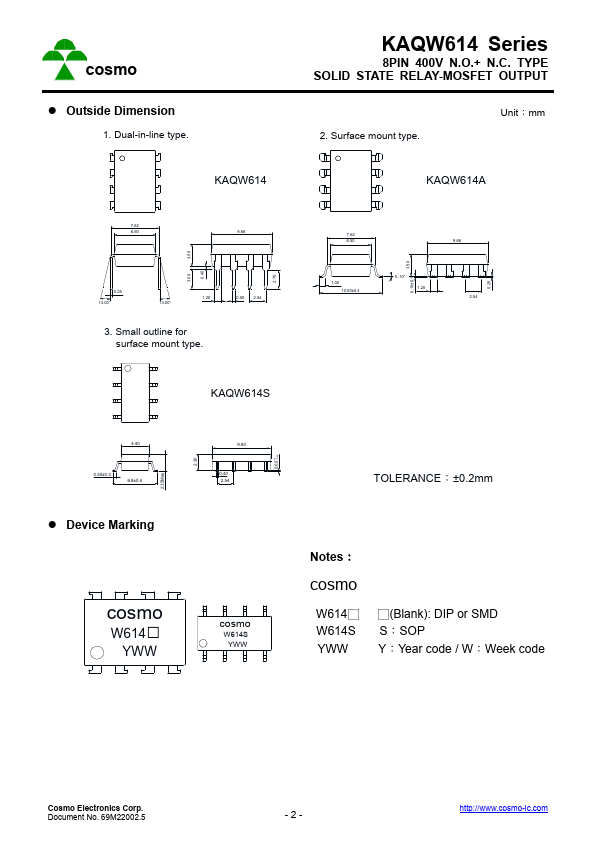

● Outside Dimension 1. Dual-in-line type. KAQW614 7.62 6.50 9.68 3.50 0.40 3.00 0.25 13.00° 1.20 13.00° 3.
