KAQW614S - SOLID STATE RELAY

This page provides the datasheet information for the KAQW614S, a member of the KAQW614 SOLID STATE RELAY family.

Description

Form A and 1 Form B SPST relays.

an integrated monolithic dies for the switch output.

Features

  • s 1. Normally open and close, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
  • UL Approved (No. E108430): UL508.
  • C-UL Approved (No. E108430).
  • FIMKO Approved: EN62368-1, EN60601-1.
  • VDE Approved (No. 40053989):.

📥 Download Datasheet

Datasheet preview – KAQW614S

Datasheet Details

Part number KAQW614S
Manufacturer Cosmo
File Size 311.48 KB
Description SOLID STATE RELAY
Datasheet download datasheet KAQW614S Datasheet
Additional preview pages of the KAQW614S datasheet.

📁 Similar Datasheet

  • KAQV216H - SOLID STATE RELAY (COSMO Electronics)
  • KAQV217 - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217A - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217S - Solid State Relay-MOSFET Output (COSMO Electronics)
Other Datasheets by Cosmo

Full PDF Text Transcription

Click to expand full text

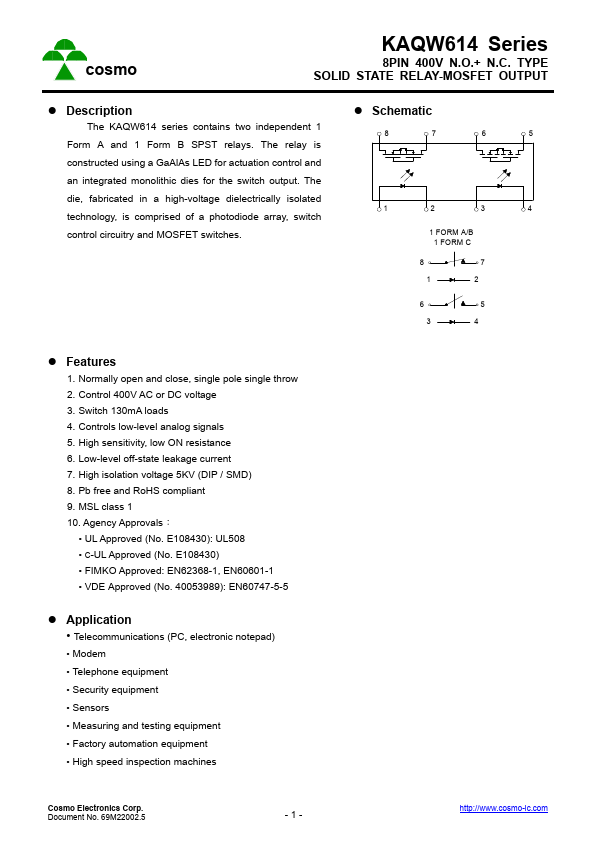

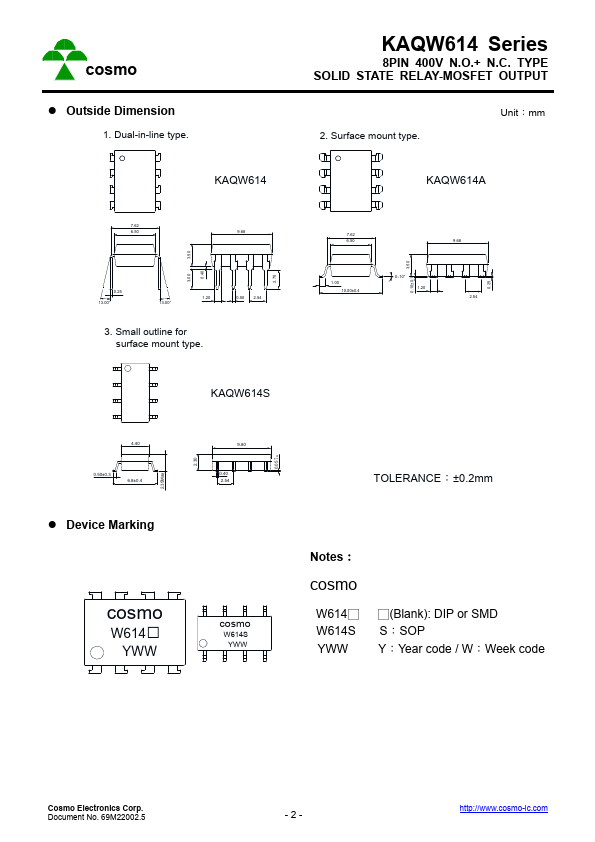

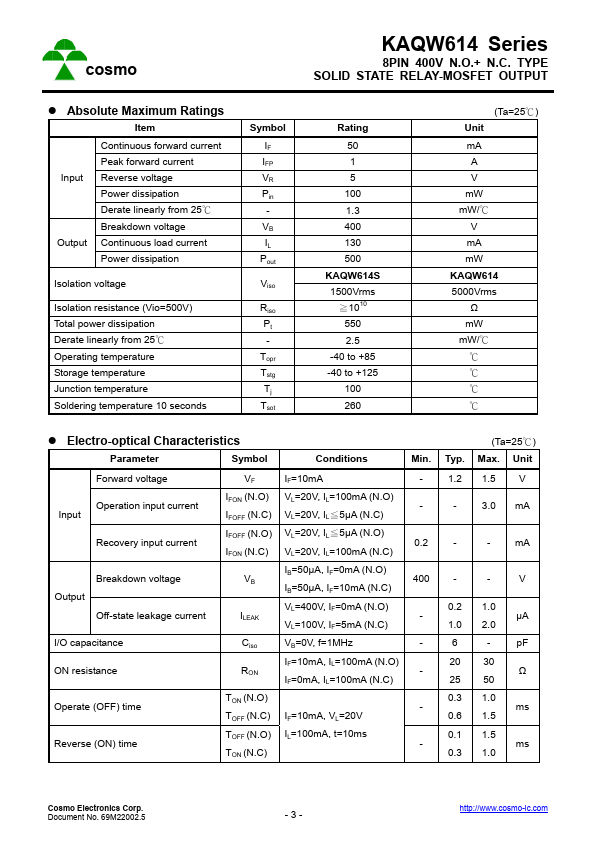

cosmo KAQW614 Series 8PIN 400V N.O.+ N.C. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Description The KAQW614 series contains two independent 1 Form A and 1 Form B SPST relays. The relay is  Schematic 8 7 6 5 constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch 1 2 3 4 control circuitry and MOSFET switches. 1 FORM A/B 1 FORM C 8 7 1 2 6 5 3 4  Features 1. Normally open and close, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7.
