KAQY216A - SOLID STATE RELAY-MOSFET OUTPUT

Product Overview

Cosmo

📥 Download Datasheet

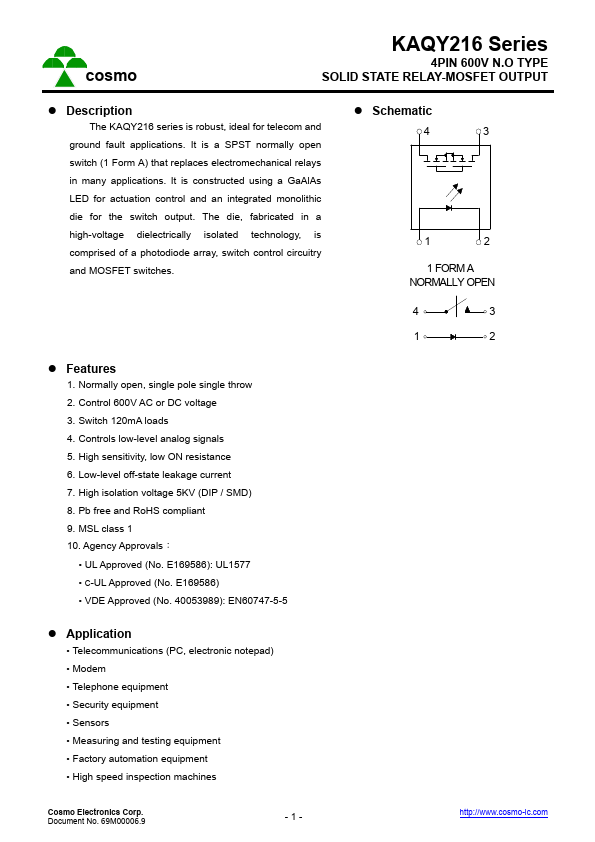

KAQY216A SOLID STATE RELAY-MOSFET OUTPUT by Cosmo - Datasheet Preview — Datasheet preview – KAQY216A

Datasheet Details

Part number	KAQY216A
Manufacturer	Cosmo
File Size	283.67 KB
Description	SOLID STATE RELAY-MOSFET OUTPUT
Datasheet	KAQY216A Datasheet
Note	This datasheet PDF includes multiple part numbers: KAQY216A, KAQY216. Please refer to the document for exact specifications by model.

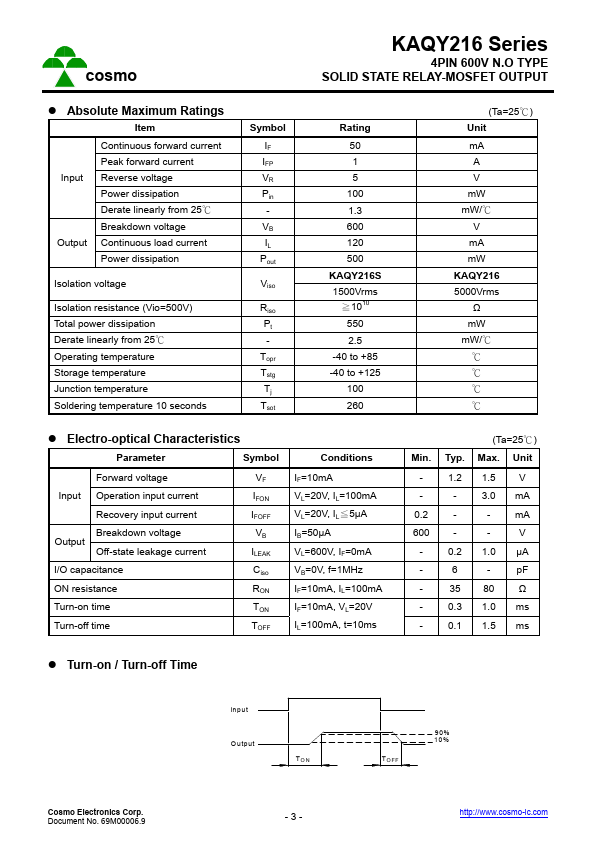

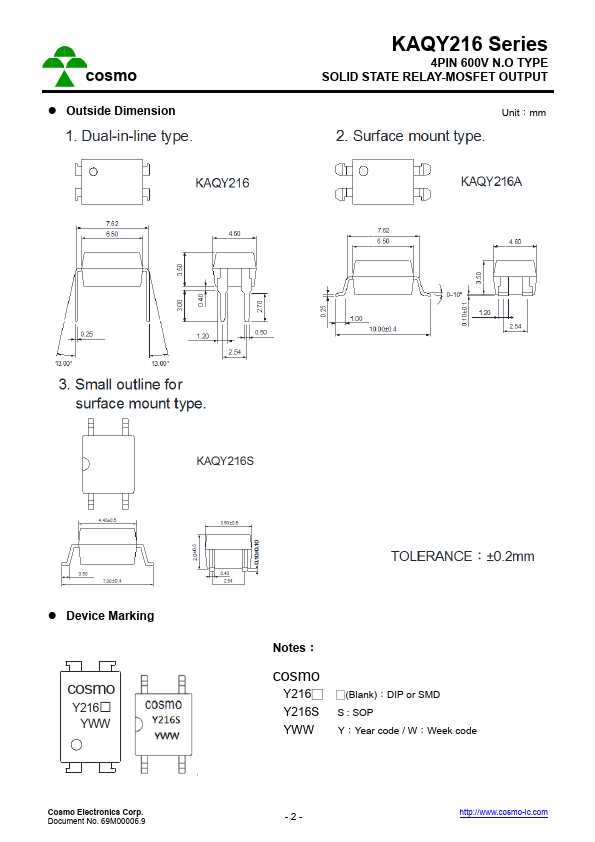

Additional preview pages of the KAQY216A datasheet.

Product details

Description

The KAQY216 series is robust, ideal for telecom and ground fault applications. Schematic 4 3 12 1 FORM A NORMALLY

Features

s 1. Normally open, single pole single throw 2. Control 600V AC or DC voltage 3. Switch 120mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E1.
