KAQY216S - SOLID STATE RELAY-MOSFET

This page provides the datasheet information for the KAQY216S, a member of the KAQY216 SOLID STATE RELAY-MOSFET family.

Description

The KAQY216 series is robust, ideal for telecom and ground fault applications.

It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications.

It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output.

Features

  • s 1. Normally open, single pole single throw 2. Control 600V AC or DC voltage 3. Switch 120mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 40053989): EN60747-5-5.

📥 Download Datasheet

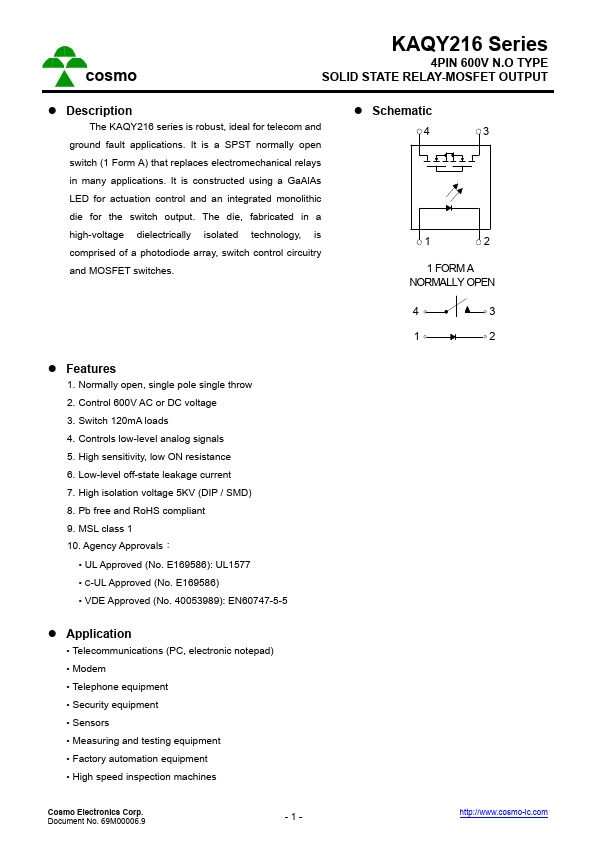

Datasheet preview – KAQY216S

Datasheet Details

Part number KAQY216S
Manufacturer Cosmo
File Size 327.79 KB
Description SOLID STATE RELAY-MOSFET
Datasheet download datasheet KAQY216S Datasheet
Additional preview pages of the KAQY216S datasheet.

📁 Similar Datasheet

  • KAQV216H - SOLID STATE RELAY (COSMO Electronics)
  • KAQV217 - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217A - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217S - Solid State Relay-MOSFET Output (COSMO Electronics)
Other Datasheets by Cosmo

Full PDF Text Transcription

Click to expand full text

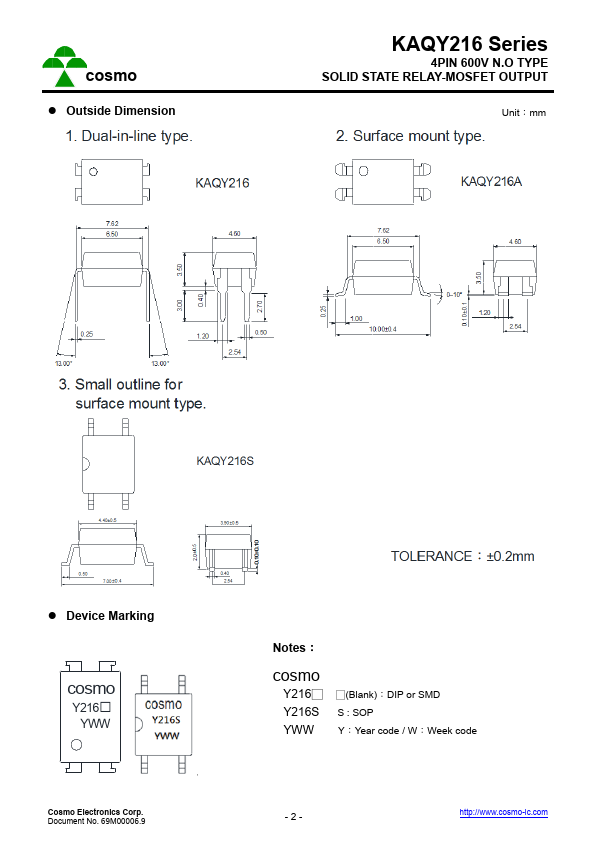

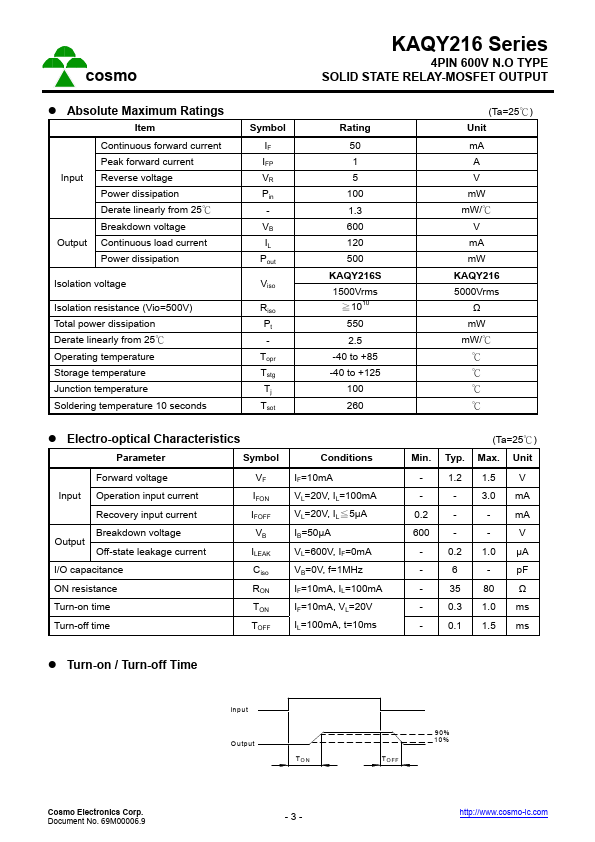

cosmo KAQY216 Series 4PIN 600V N.O TYPE SOLID STATE RELAY-MOSFET OUTPUT  Description The KAQY216 series is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches.  Schematic 4 3 1 2 1 FORM A NORMALLY OPEN 4 3 1 2  Features 1. Normally open, single pole single throw 2. Control 600V AC or DC voltage 3. Switch 120mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6.
