KAQY412 - SOLID STATE RELAY-MOSFET OUTPUT

Description

The KAQY412 series is robust, ideal for telecom and ground fault applications.

It is a SPST normally close switch (1 Form B) that replaces electromechanical relays in many applications.

It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output.

Features

  • s 1. Normally close, single pole single throw 2. Control 60V AC or DC voltage 3. Switch 200mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
  • UL Approved (No. E169586, E108430): UL1577, UL508.
  • C-UL Approved (No. E169586, E108430).
  • VDE Approved (No. 40053989): EN60747-5-5.

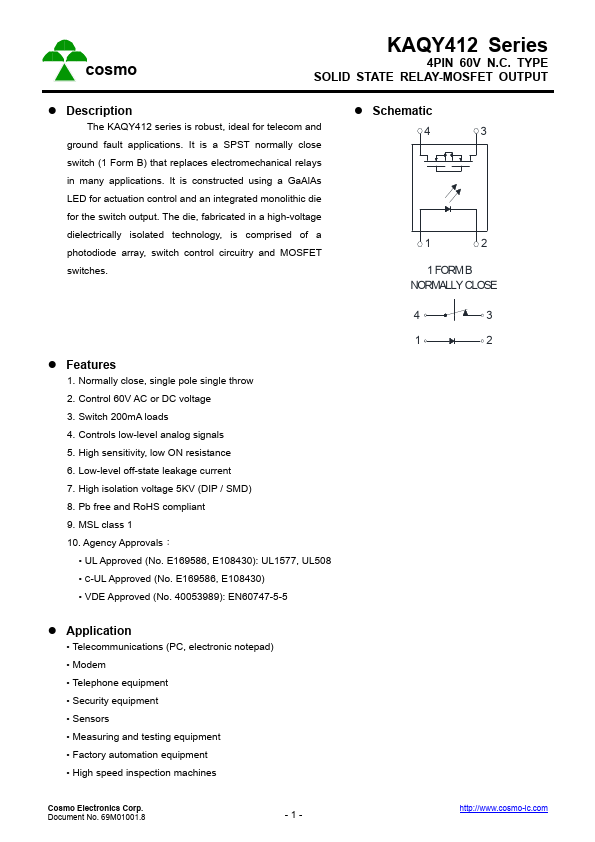

  • Schematic.

📥 Download Datasheet

Datasheet preview – KAQY412

Datasheet Details

Part number KAQY412
Manufacturer Cosmo
File Size 331.47 KB
Description SOLID STATE RELAY-MOSFET OUTPUT
Datasheet download datasheet KAQY412 Datasheet

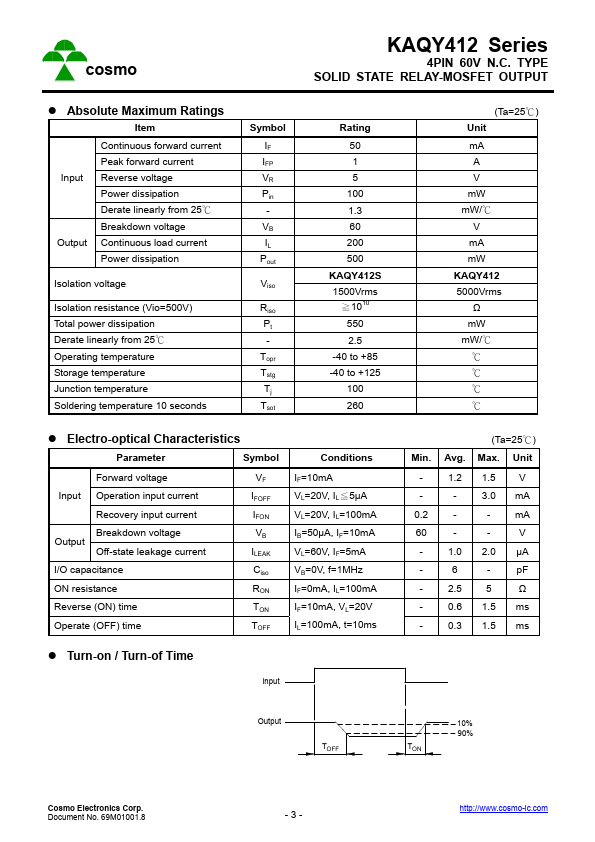

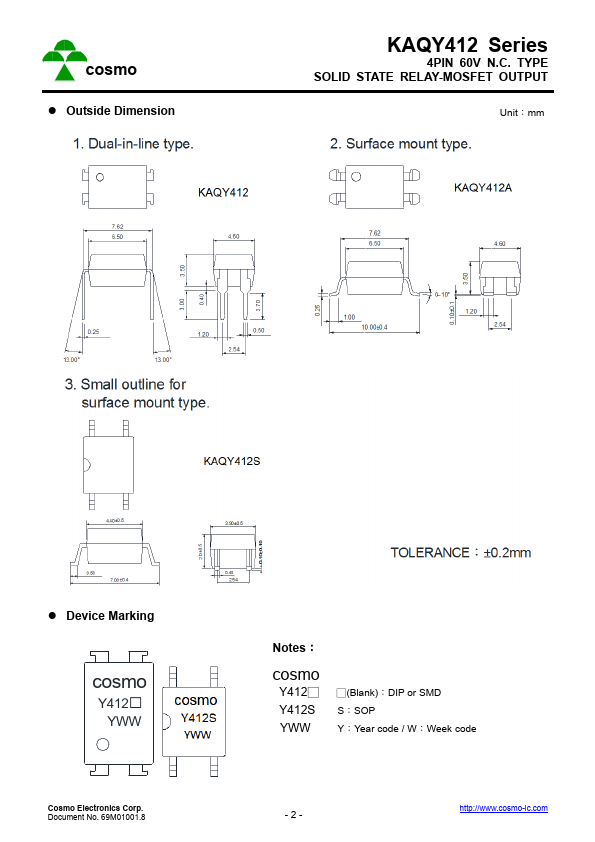

Additional preview pages of the KAQY412 datasheet.

📁 Similar Datasheet

  • KAQV216H - SOLID STATE RELAY (COSMO Electronics)
  • KAQV217 - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217A - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217S - Solid State Relay-MOSFET Output (COSMO Electronics)
Other Datasheets by Cosmo
  • KAQY412A - SOLID STATE RELAY-MOSFET OUTPUT
  • KAQY412S - SOLID STATE RELAY-MOSFET OUTPUT
  • KAQY414 - SOLID STATE RELAY-MOSFET OUTPUT
  • KAQY414A - SOLID STATE RELAY-MOSFET OUTPUT
  • KAQY414S - SOLID STATE RELAY-MOSFET OUTPUT
  • KAQY210 - SOLID STATE RELAY MOSFET
  • KAQY210A - Solid State Relay Mosfet
  • KAQY210H - SOLID STATE RELAY MOSFET

Full PDF Text Transcription

Click to expand full text
cosmo KAQY412 Series 4PIN 60V N.C. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Description The KAQY412 series is robust, ideal for telecom and ground fault applications. It is a SPST normally close switch (1 Form B) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches.  Features 1. Normally close, single pole single throw 2. Control 60V AC or DC voltage 3. Switch 200mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7.
