KAQY412S Datasheet SOLID STATE RELAY-MOSFET OUTPUT

Manufacturer: Cosmo

Download the KAQY412S datasheet PDF. This datasheet also includes the KAQY412 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KAQY412-Cosmo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KAQY412S
Manufacturer Cosmo
File Size 331.47 KB
Description SOLID STATE RELAY-MOSFET OUTPUT
Datasheet download datasheet KAQY412S Datasheet

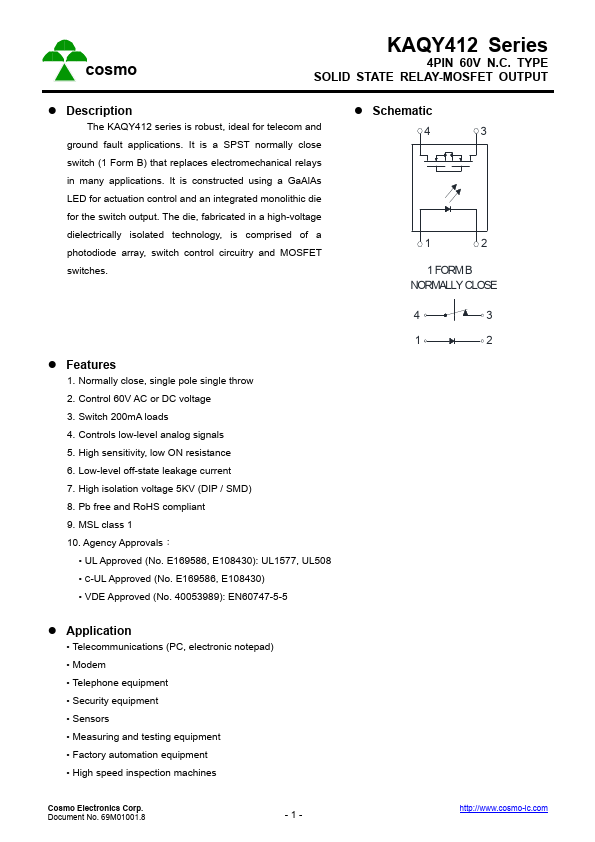

General Description

The KAQY412 series is robust, ideal for telecom and ground fault applications.

It is a SPST normally close switch (1 Form B) that replaces electromechanical relays in many applications.

It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output.

Overview

cosmo KAQY412 Series 4PIN 60V N.C.

TYPE SOLID STATE RELAY-MOSFET OUTPUT.

Key Features

  • s 1. Normally close, single pole single throw 2. Control 60V AC or DC voltage 3. Switch 200mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
  • UL Approved (No. E169586, E108430): UL1577, UL508.
  • C-UL Approved (No. E169586, E108430).
  • VDE Approved (No. 40053989): EN60747-5-5.
  • Schematic.
