KPC354NT0A Datasheet 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER

Manufacturer: Cosmo

Download the KPC354NT0A datasheet PDF. This datasheet also includes the KPC354NT variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KPC354NT_COSMOElectronicsCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KPC354NT0A
Manufacturer Cosmo
File Size 214.83 KB
Description 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet download datasheet KPC354NT0A Datasheet

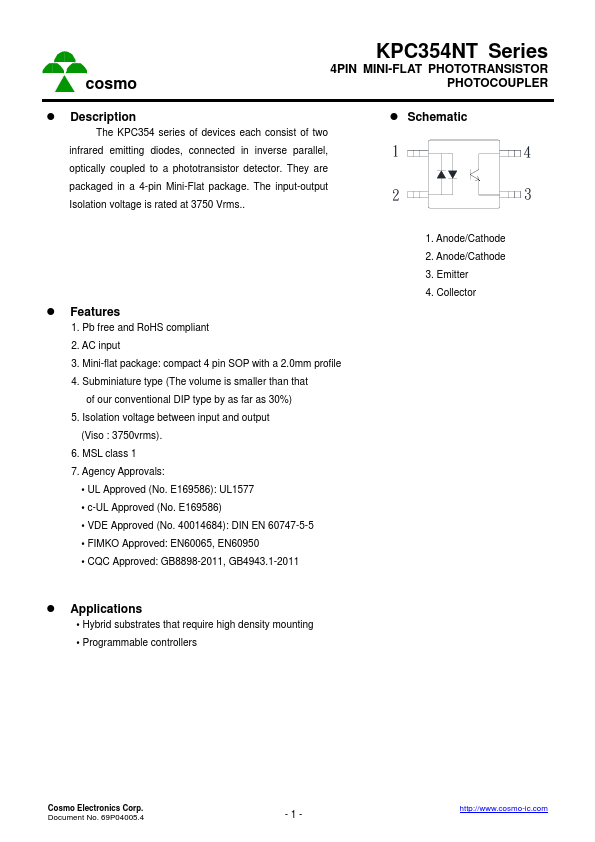

General Description

z Schematic The KPC354 series of devices each consist of two 1 4 infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector.

They are packaged in a 4-pin Mini-Flat package.

The input-output 2 3 Isolation voltage is rated at 3750 Vrms..

Overview

cosmo KPC354NT Series 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER.

Key Features

  • 1. Pb free and RoHS compliant 2. AC input 3. Mini-flat package: compact 4 pin SOP with a 2.0mm profile 4. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 5. Isolation voltage between input and output (Viso : 3750vrms). 6. MSL class 1 7. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40014684): DIN EN 60747-5-5.
  • FIMKO Approved: EN60065, EN60950.
  • CQC.
