KPC354NT0B Datasheet PDF (4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER)

KPC354NT0B - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER

This page provides the datasheet information for the KPC354NT0B, a member of the KPC354NT 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER family.

Description

optically coupled to a phototransistor detector.

packaged in a 4-pin Mini-Flat package.

Isolation voltage is rated at 3750 Vrms..

Features

1. Pb free and RoHS compliant 2. AC input 3. Mini-flat package: compact 4 pin SOP with a 2.0mm profile 4. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 5. Isolation voltage between input and output (Viso : 3750vrms). 6. MSL class 1 7. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
VDE Approved (No. 40014684): DIN EN 60747-5-5.
FIMKO Approved: EN60065, EN60950.
CQC.

Datasheet Details

Part number	KPC354NT0B
Manufacturer	Cosmo
File Size	214.83 KB
Description	4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	KPC354NT0B Datasheet
Additional preview pages of the KPC354NT0B datasheet.

📁 Similar Datasheet

KPC354NT - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER (COSMO Electronics Corporation)

KPC355NT - High Reliability Photo Coupler (COSMO Electronics Corporation)

KPC355x3CE3C7xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)

KPC355x4AE4B7xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)

KPC355x4BE4B7xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)

KPC357NT - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER (COSMO Electronics Corporation)

KPC3020 - (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting) (Kodenshi)

KPC3021 - (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting) (Kodenshi)

KPC3022 - (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting) (Kodenshi)

KPC3023 - (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting) (Kodenshi)

Full PDF Text Transcription

Click to expand full text

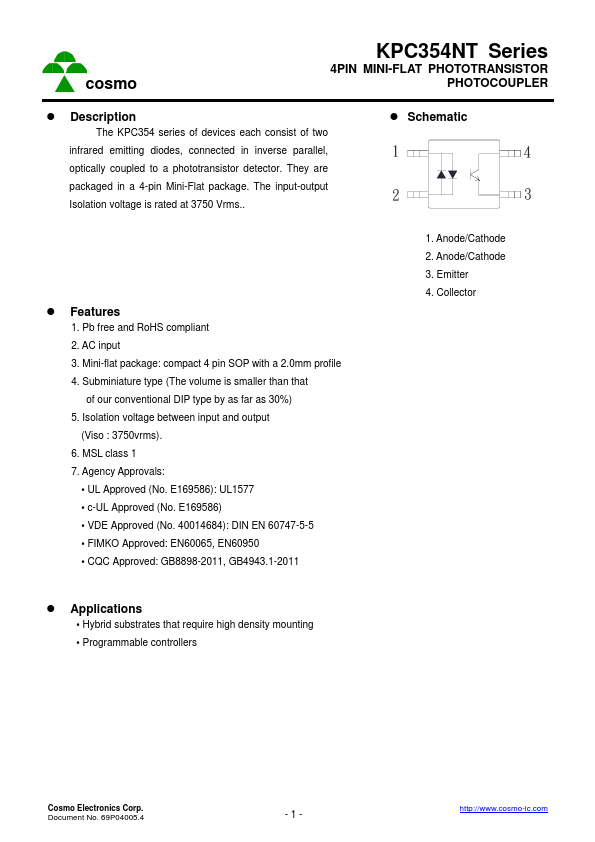

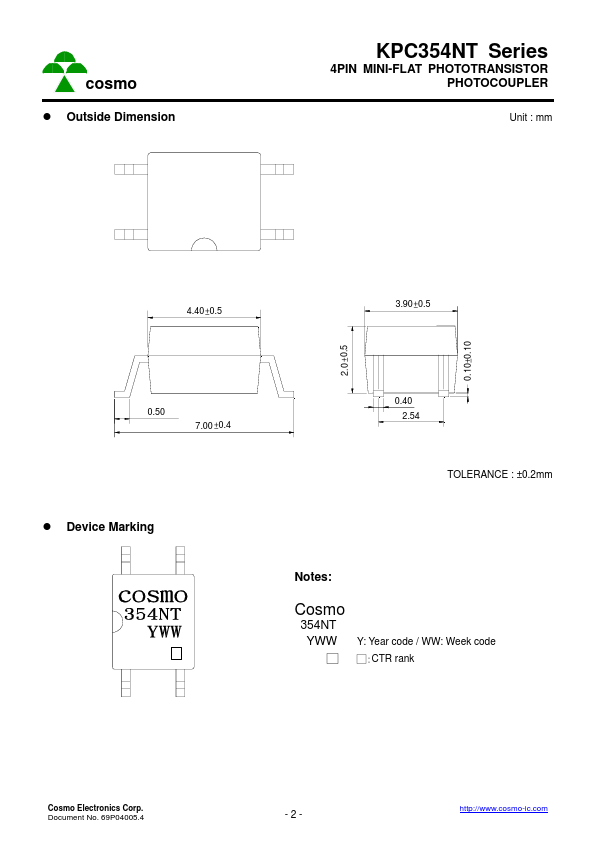

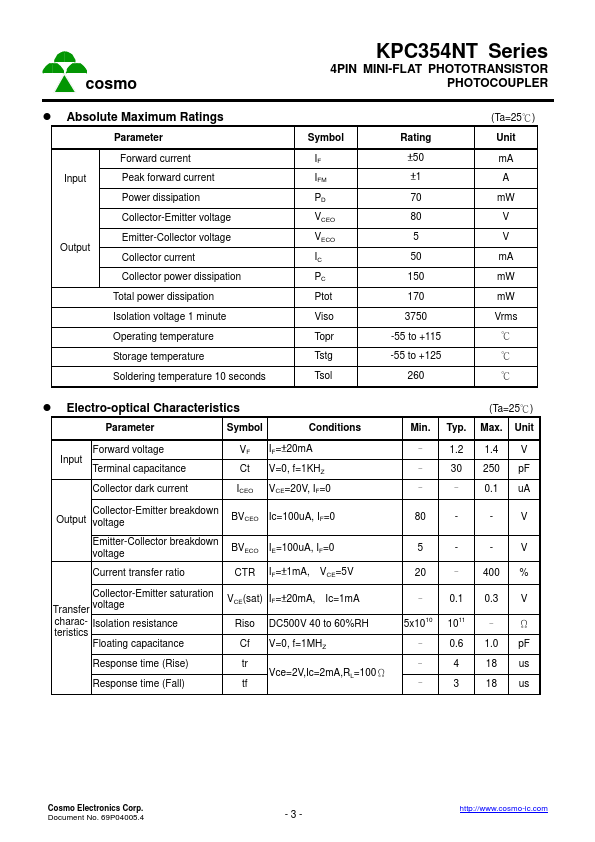

cosmo KPC354NT Series 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER z Description z Schematic The KPC354 series of devices each consist of two 1 4 infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector. They are packaged in a 4-pin Mini-Flat package. The input-output 2 3 Isolation voltage is rated at 3750 Vrms.. z Features 1. Pb free and RoHS compliant 2. AC input 3. Mini-flat package: compact 4 pin SOP with a 2.0mm profile 4. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 5. Isolation voltage between input and output (Viso : 3750vrms). 6. MSL class 1 7. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No.
