KTLP350 - 8PIN IGBT GATE DRIVE PHOTOCOUPLER

General Description

The KTLP350 contain a GaAlAs light emitter diode optically coupled to an integrated circuit with a power output stage.

.

KTLP350 series photo coupler is ideally suited for driving IGBT and power MOSFET used in motor control inverter application and inverter power system.

Key Features

  • s 1. Input threshold current: IF=5mA(max. ) 2. Supply current (Icc): 3 mA (max. ) 3. Supply voltage (Vcc): 10.
  • 30V 4. Output current (IO): ±2.5A (max. ) 5. Switching time (tpLH/tpHL): 0.5µs(max. ) 6. Isolation voltage: 5000Vrms(min. ) 7. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40020973): DIN EN60747-5-5.

📥 Download Datasheet

Datasheet Details

Part number KTLP350
Manufacturer Cosmo
File Size 480.87 KB
Description 8PIN IGBT GATE DRIVE PHOTOCOUPLER
Datasheet download datasheet KTLP350 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KTLP3502 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER COSMO Electronics Corporation
KTLP3503 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER COSMO Electronics Corporation
KTLP3506 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER COSMO Electronics Corporation
KTLP3507 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER COSMO Electronics Corporation
KTLP3520 Photo Coupler COSMO Electronics Corporation

Other Datasheets by Cosmo

Part Number Description
KTLP3502H 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
KTLP3502L 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
KTLP3502S 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
KTLP3503H 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
KTLP3503L 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

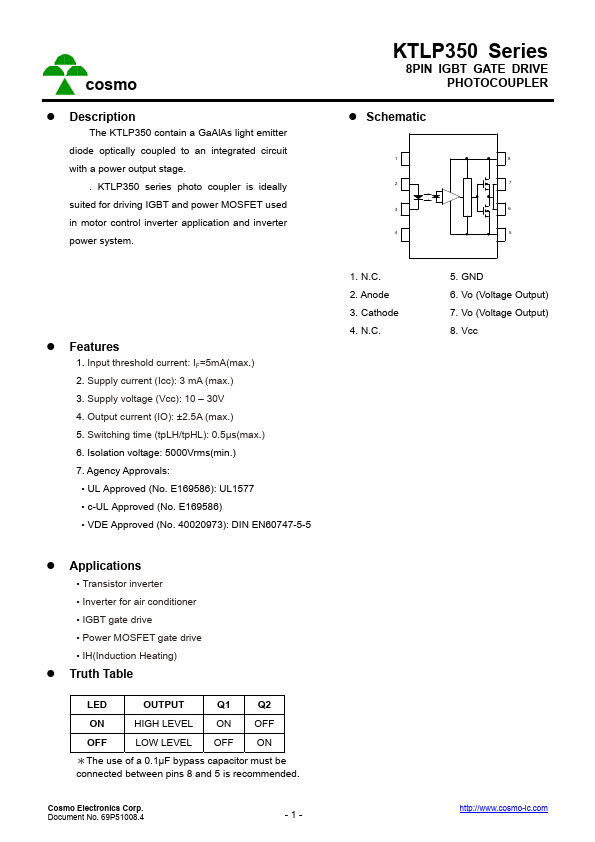

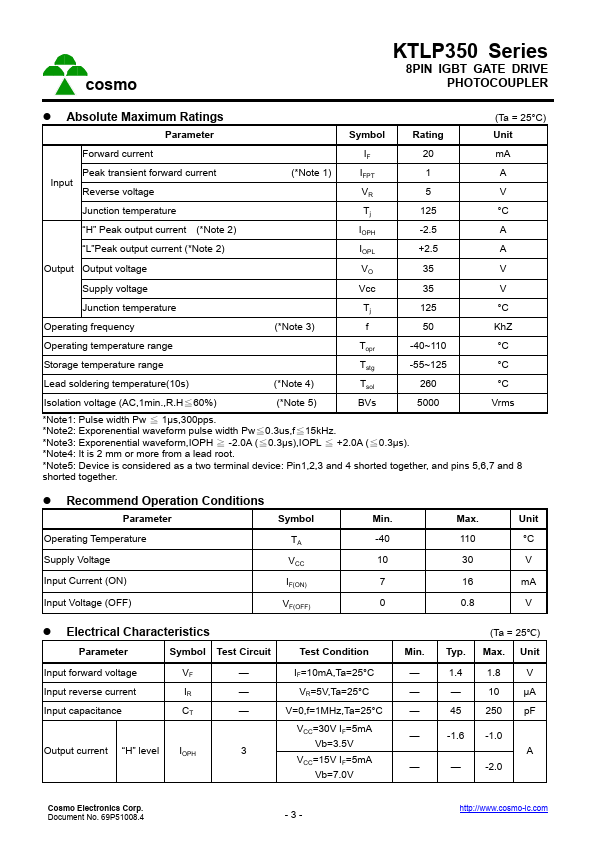

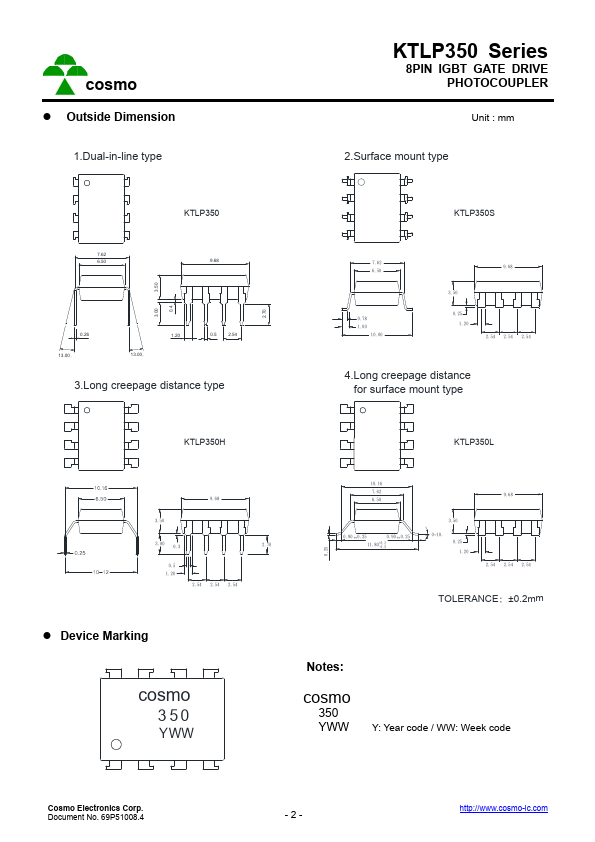

cosmo  Description The KTLP350 contain a GaAlAs light emitter diode optically coupled to an integrated circuit with a power output stage. . KTLP350 series photo coupler is ideally suited for driving IGBT and power MOSFET used in motor control inverter application and inverter power system.  Features 1. Input threshold current: IF=5mA(max.) 2. Supply current (Icc): 3 mA (max.) 3. Supply voltage (Vcc): 10 – 30V 4. Output current (IO): ±2.5A (max.) 5. Switching time (tpLH/tpHL): 0.5µs(max.) 6. Isolation voltage: 5000Vrms(min.) 7. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No.
