KTLP3616L

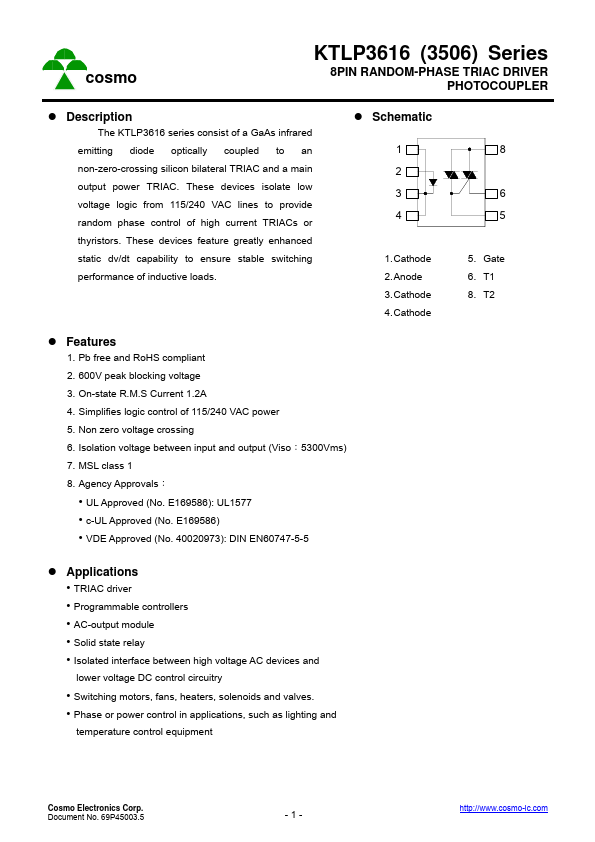

Description
The KTLP3616 series consist of a Ga As infrared emitting diode optically coupled to an non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC. These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or thyristors. These devices feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads. z Schematic
1 2 3 4
1. Cathode 2. Anode 3. Cathode 4. Cathode z Features
1. Pb free and Ro HS pliant 2. 600V peak blocking voltage 3. On-state R.M.S Current 1.2A 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：5300Vms) 7. MSL class 1 8. Agency Approvals：
- UL Approved (No. E169586): UL1577
- c-UL Approved (No. E169586)
- VDE Approved (No. 40020973): DIN EN60747-5-5
6 5
5. Gate 6. T1 8. T2 z Applications
- TRIAC driver
- Programmable controllers
- AC-output module
- Solid state...
