CXTILT02EC - Tilt Sensors

Download the CXTILT02EC datasheet PDF. This datasheet also covers the CXTILT02E variant, as both devices belong to the same tilt sensors family and are provided as variant models within a single manufacturer datasheet.

General Description

Enhanced Enhanced & Compensated Angular Range ± 75° ± 75° CALL FACTORY FOR OTHER CONFIGURATIONS Temperature Range 0 to +70°C -40 to +85°C ▼33 Document Part Number: 6020-0011-01 Rev F phone: 408.965.3300 ▼ fax: 408.324.4840 ▼ e-mail: info@xbow.com ▼ web: www.xbow.com Application Information CXTI

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CXTILT02E-Crossbow.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CXTILT02EC
Manufacturer Crossbow
File Size 363.92 KB
Description Tilt Sensors
Datasheet download datasheet CXTILT02EC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXTILT02EC Powerful Sensing Solutions MEMSIC
CXTILT02 Powerful Sensing Solutions MEMSIC
CXT2222A SURFACE MOUNT NPN SILICON TRANSISTOR Central Semiconductor Corp
CXT2907A SURFACE MOUNT PNP SILICON TRANSISTOR Central Semiconductor Corp
CXT3019 SURFACE MOUNT NPN SILICON TRANSISTORS Central Semiconductor Corp

Other Datasheets by Crossbow

Part Number Description
CXTILT02E Tilt Sensors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

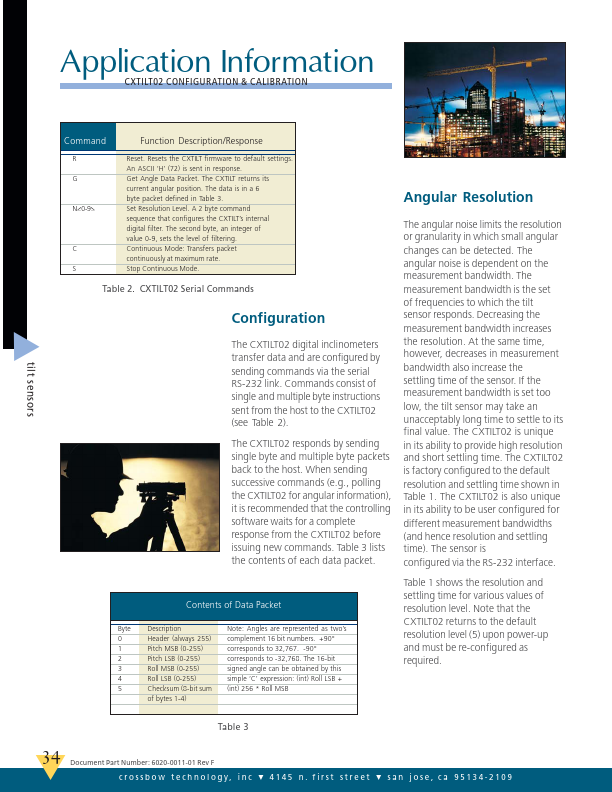

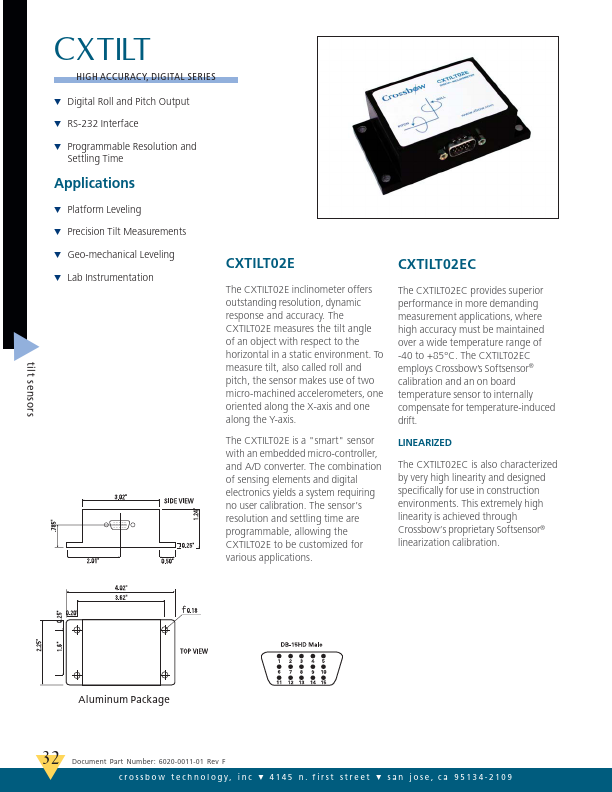

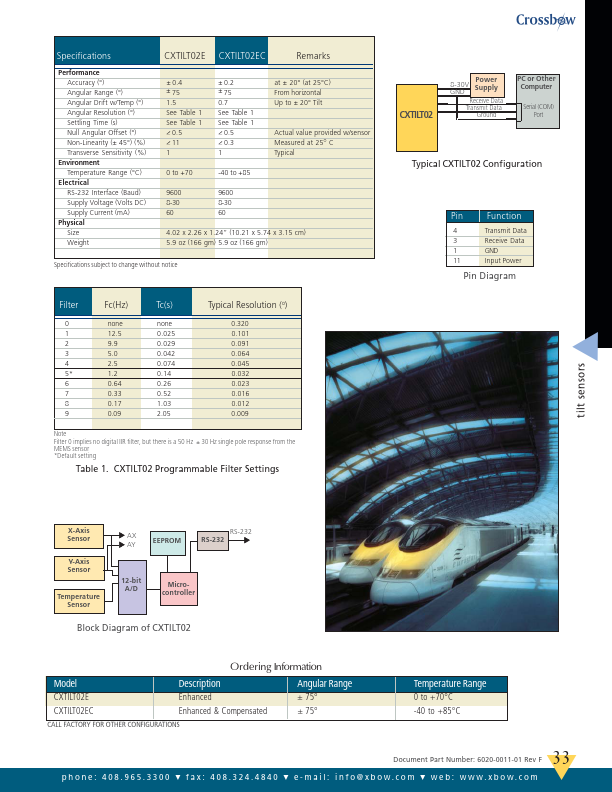

▼ tilt sensors CXTILT HIGH ACCURACY, DIGITAL SERIES ▼ Digital Roll and Pitch Output ▼ RS-232 Interface ▼ Programmable Resolution and Settling Time Applications ▼ Platform Leveling ▼ Precision Tilt Measurements ▼ Geo-mechanical Leveling ▼ Lab Instrumentation CXTILT02E CXTILT02EC The CXTILT02E inclinometer offers outstanding resolution, dynamic response and accuracy. The CXTILT02E measures the tilt angle of an object with respect to the horizontal in a static environment. To measure tilt, also called roll and pitch, the sensor makes use of two micro-machined accelerometers, one oriented along the X-axis and one along the Y-axis. The CXTILT02E is a "smart" sensor with an embedded micro-controller, and A/D converter.
