CXTILT02 - Powerful Sensing Solutions

MEMSIC

General Description

Reset.

Resets the CXTILT firmware to default settings.

An ASCII ‘H’ (72) is sent in response.

Key Features

฀Roll and Pitch Angle Output.
฀Accuracy.

📥 Download Datasheet

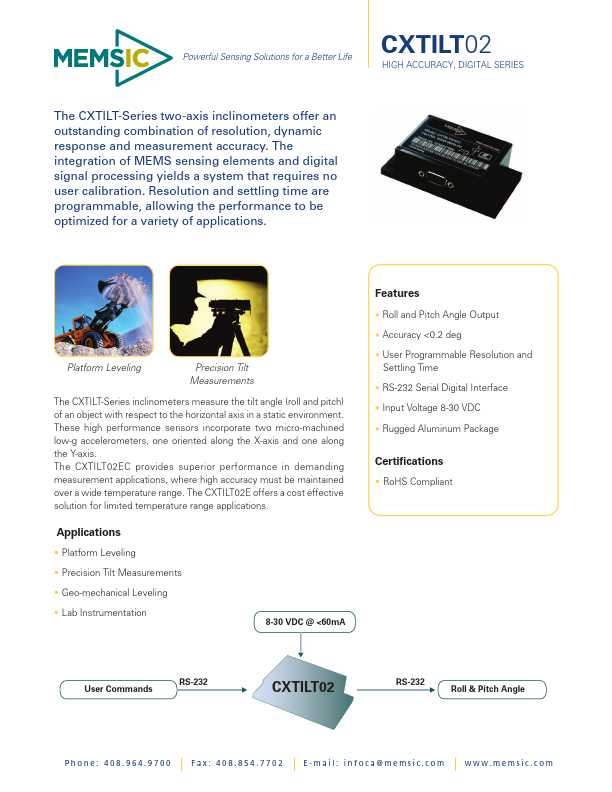

CXTILT02 powerful sensing solutions by MEMSIC - Datasheet Preview

Datasheet Details

Part number	CXTILT02
Manufacturer	MEMSIC
File Size	192.68 KB
Description	Powerful Sensing Solutions
Datasheet	CXTILT02 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
CXTILT02E	Tilt Sensors	Crossbow
CXTILT02EC	Tilt Sensors	Crossbow
CXT2222A	SURFACE MOUNT NPN SILICON TRANSISTOR	Central Semiconductor Corp
CXT2907A	SURFACE MOUNT PNP SILICON TRANSISTOR	Central Semiconductor Corp
CXT3019	SURFACE MOUNT NPN SILICON TRANSISTORS	Central Semiconductor Corp

Other Datasheets by MEMSIC

Part Number	Description
CXTILT02EC	Powerful Sensing Solutions
CXTLA02	dual-axis analog tilt senso

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Powerful Sensing Solutions for a Better Life CXTILT02 HIGH ACCURACY, DIGITAL SERIES The CXTILT-Series two-axis inclinometers offer an outstanding combination of resolution, dynamic response and measurement accuracy. The integration of MEMS sensing elements and digital signal processing yields a system that requires no user calibration. Resolution and settling time are programmable, allowing the performance to be optimized for a variety of applications. Platform Leveling Precision Tilt Measurements The CXTILT-Series inclinometers measure the tilt angle (roll and pitch) of an object with respect to the horizontal axis in a static environment. These high performance sensors incorporate two micro-machined low-g accelerometers, one oriented along the X-axis and one along the Y-axis.
