INS5710A Datasheet | DAPU

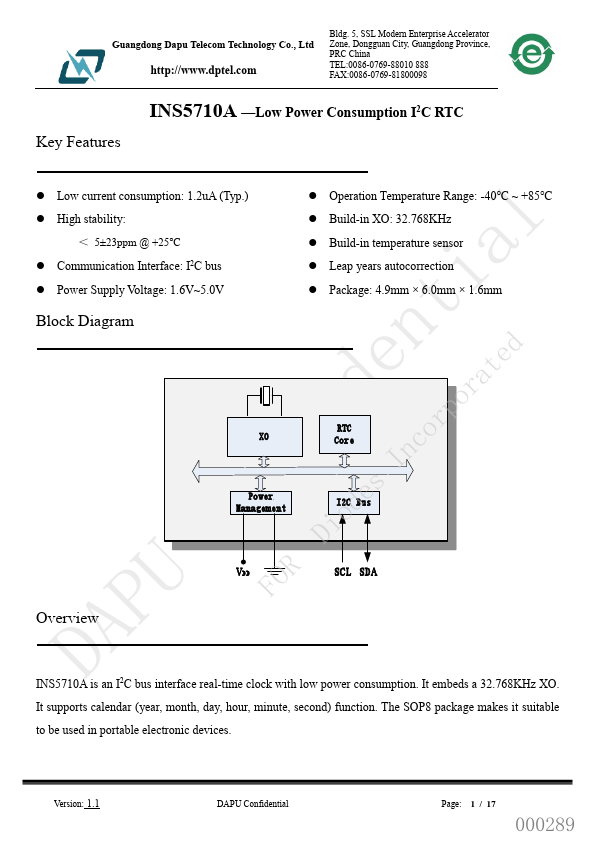

Guangdong Dapu Tele Technology Co., Ltd http://.dptel. Bldg. 5, SSL Modern Enterprise Accelerator Zone, Dongguan City, Guangdong Province, PRC China TEL:0086-0769-88010 888 FAX:0086-0769-81800098 Key Features - Low Power Consumption I2C RTC - Low current consumption: 1.2u A (Typ.) - High stability: ＜ 5±23ppm @ +25℃ - munication Interface: I2C bus - Power Supply Voltage: 1.6V~5.0V - Operation Temperature Range: -40℃ ~ +85℃ - Build-in XO: 32.768KHz - Build-in temperature sensor - Leap years autocorrection - Package: 4.9mm × 6.0mm × 1.6mm Block Diagram Overview Power Management FOR VDD RTC Core Incorporated Di I2o C d Bues s SCL SDA INS5710A is an I2C bus interface real-time clock with low power consumption. It embeds a 32.768KHz XO. It supports calendar (year, month, day, hour, minute, second) function. The SOP8 package makes it suitable to be used in portable electronic devices. Version: 1.1 DAPU Confidential Page: 1 / 17 Guangdong Dapu Tele Technology Co., Ltd http://.dptel. Bldg. 5, SSL Modern Enterprise Accelerator Zone, Dongguan City, Guangdong Province, PRC China TEL:0086-0769-88010 888 FAX:0086-0769-81800098 Revision History Version Change...
