INS5830B Datasheet | DAPU

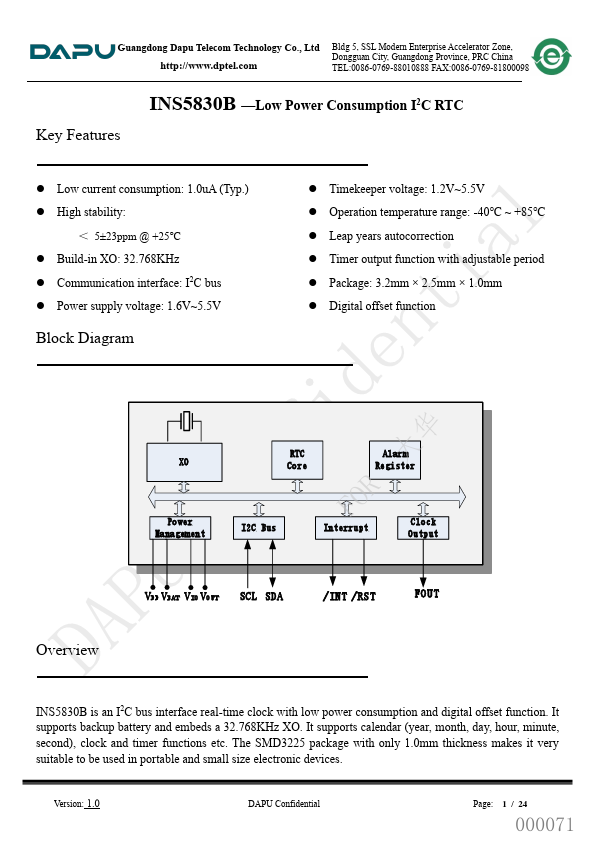

Guangdong Dapu Tele Technology Co., Ltd Bldg 5, SSL Modern Enterprise Accelerator Zone, http://.dptel. Dongguan City, Guangdong Province, PRC China TEL:0086-0769-88010888 FAX:0086-0769-81800098 Key Features - Low Power Consumption I2C RTC - Low current consumption: 1.0u A (Typ.) - High stability: ＜ 5±23ppm @ +25℃ - Build-in XO: 32.768KHz - munication interface: I2C bus - Power supply voltage: 1.6V~5.5V Block Diagram - Timekeeper voltage: 1.2V~5.5V - Operation temperature range: -40℃ ~ +85℃ - Leap years autocorrection - Timer output function with adjustable period - Package: 3.2mm × 2.5mm × 1.0mm - Digital offset function Power Management RTC Core I2C Bus 华 大 Alarm Register Interrupt Clock Output Overview VDD VBAT VIO VOUT SCL SDA /INT /RST FOUT INS5830B is an I2C bus interface real-time clock with low power consumption and digital offset function. It supports backup battery and embeds a 32.768KHz XO. It supports calendar (year, month, day, hour, minute, second), clock and timer functions etc. The SMD3225 package with only 1.0mm thickness makes it very suitable to be used in portable and small size electronic devices. Version:...
