INS5A8804
INS5A8804 is Automotive High Accuracy I2C RTC manufactured by DAPU.
Guangdong Dapu Tele Technology Co., Ltd Bldg 5, SSL Modern Enterprise Accelerator Zone, http://.dptel.
Dongguan City, Guangdong Province, PRC China TEL:0086-0769-88010888
FAX:0086-0769-81800098

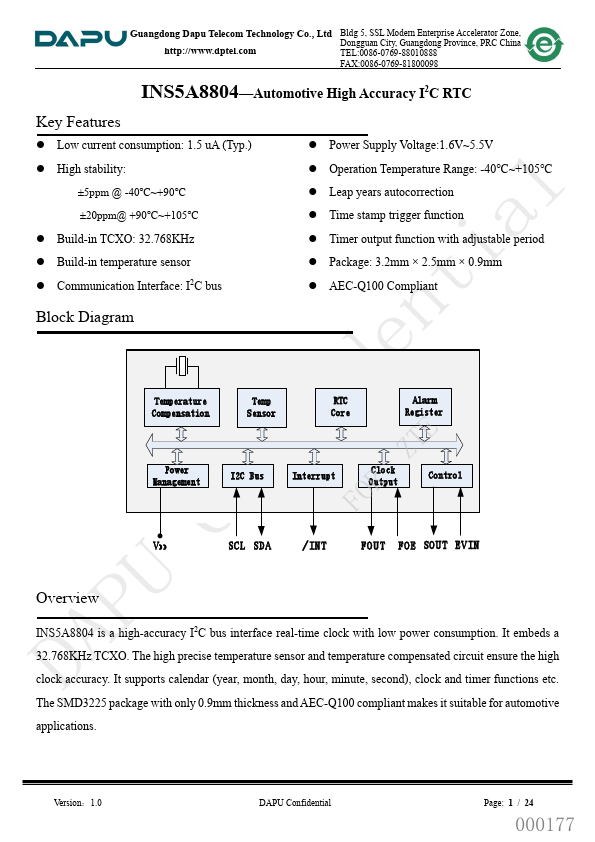

INS5A8804- Automotive High Accuracy I2C RTC
Key Features
- Low current consumption: 1.5 u A (Typ.)
- High stability:
±5ppm @ -40℃~+90℃ ±20ppm@ +90℃~+105℃
- Build-in TCXO: 32.768KHz
- Build-in temperature sensor
- munication Interface: I2C bus
- Power Supply Voltage:1.6V~5.5V
- Operation Temperature Range: -40℃~+105℃
- Leap years autocorrection
- Time stamp trigger function
- Timer output function with adjustable period
- Package: 3.2mm × 2.5mm × 0.9mm
- AEC-Q100 pliant
Block Diagram
Temperature pensation
Power Management
Temp Sensor
I2C Bus
Alarm
Core
Register
Interrupt
Clock
FOROutput
Control...
