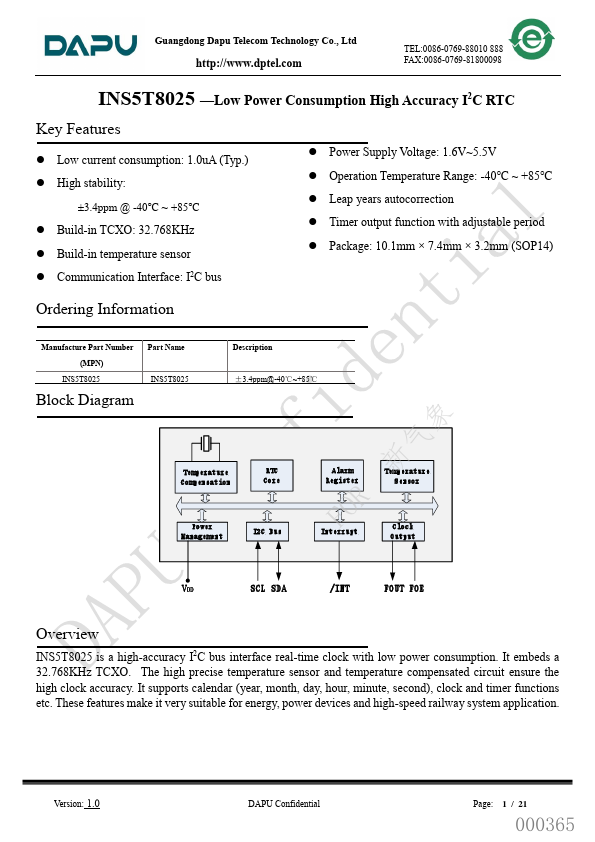

INS5T8025
INS5T8025 is Low Power Consumption High Accuracy I2C RTC manufactured by DAPU.
Guangdong Dapu Tele Technology Co., Ltd http://.dptel.
TEL:0086-0769-88010 888 FAX:0086-0769-81800098
- Low Power Consumption High Accuracy I2C RTC
Key Features
- Low current consumption: 1.0u A (Typ.)
- High stability:
±3.4ppm @ -40℃ ~ +85℃
- Build-in TCXO: 32.768KHz
- Build-in temperature sensor
- munication Interface: I2C bus
- Power Supply Voltage: 1.6V~5.5V
- Operation Temperature Range: -40℃ ~ +85℃
- Leap years autocorrection
- Timer output function with adjustable period
- Package: 10.1mm × 7.4mm × 3.2mm (SOP14)
Ordering Information
Manufacture Part Number (MPN)
Block Diagram
Part Name INS5T8025
Description ±3.4ppm@-40℃~+85℃
Temperature pensation
RTC Core
Power Management
I2C Bus
Alarm Register
Interrupt
象 气 新Temperature
Sensor
Clock Output
SCL...
