BAS70-04 - SURFACE-MOUNT SCHOTTKY BARRIER DIODE

Product Overview

DIODES

Datasheet Details

Part number	BAS70-04
Manufacturer	DIODES
File Size	472.74 KB
Description	SURFACE-MOUNT SCHOTTKY BARRIER DIODE

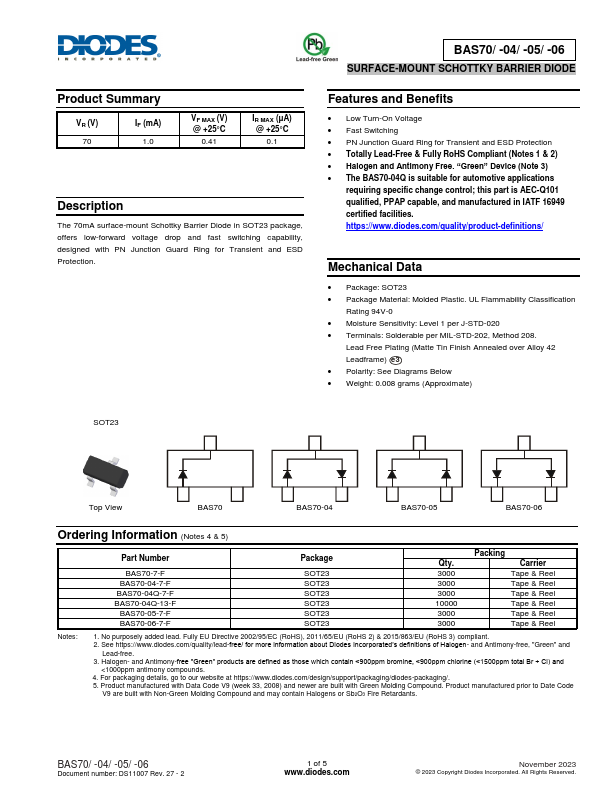

Datasheet	BAS70-04 Datasheet
Note	This datasheet PDF includes multiple part numbers: BAS70-04, BAS70. Please refer to the document for exact specifications by model.

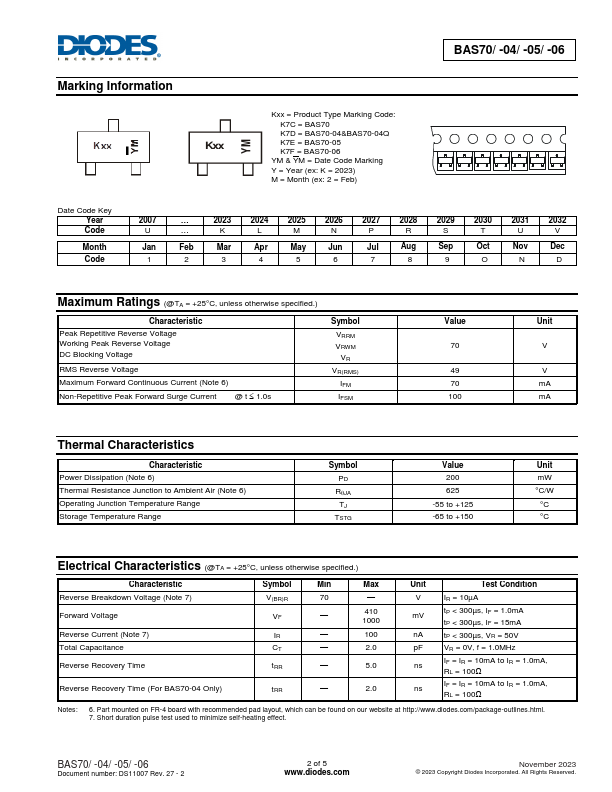

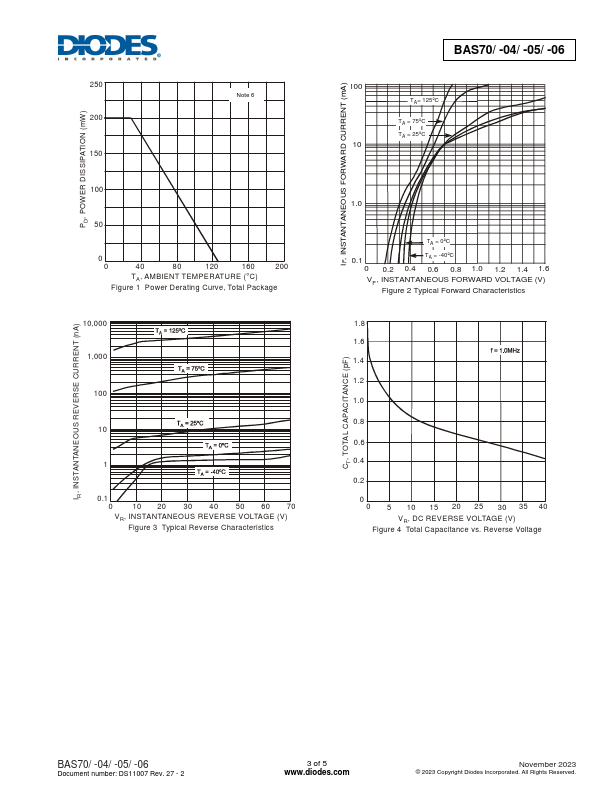

Additional preview pages of the BAS70-04 datasheet.

Product details

Description

The 70mA surface-mount Schottky Barrier Diode in SOT23 package, offers low-forward voltage drop and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection.

Features

Low Turn-On Voltage.
Fast Switching.
PN Junction Guard Ring for Transient and ESD Protection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The BAS70-04Q is suitable for automotive.
