BAS70 - SURFACE-MOUNT SCHOTTKY BARRIER DIODE

Description

The 70mA surface-mount Schottky Barrier Diode in SOT23 package, offers low-forward voltage drop and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection.

Features

  • Low Turn-On Voltage.
  • Fast Switching.
  • PN Junction Guard Ring for Transient and ESD Protection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • The BAS70-04Q is suitable for automotive.

📥 Download Datasheet

📁 Similar Datasheet

  • BAS70 - Surface Mount Barrier Diode (Multicomp)
  • BAS70 - Low series inductance and resistance Schottky diodes (STMicroelectronics)
  • BAS70 - General-purpose Schottky diodes (NXP)
  • BAS70 - Surface Mount Schottky Barrier Diodes (Vishay Telefunken)
  • BAS70 - Silicon Schottky Diode (Infineon)
  • BAS70 - SOT-23 SURFACE MOUNT SCHOTTKY DIODE (Rectron)
  • BAS70 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • BAS70 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Frontier Electronics)
  • BAS70 - Schottky Rectifier Diodes (MIC)
  • BAS70 - SMD Small Signal Schottky Diodes (Diotec)
Other Datasheets by DIODES
  • BAS70-04 - SURFACE-MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-04T - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-05 - SURFACE-MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-05Q - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-05T - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-06 - SURFACE-MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-06Q - SURFACE MOUNT SCHOTTKY BARRIER DIODE
  • BAS70-06T - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text

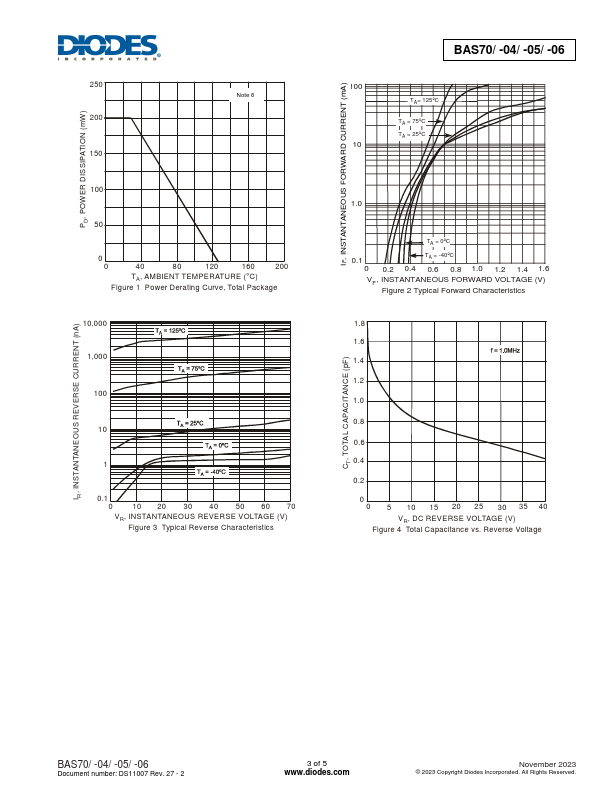

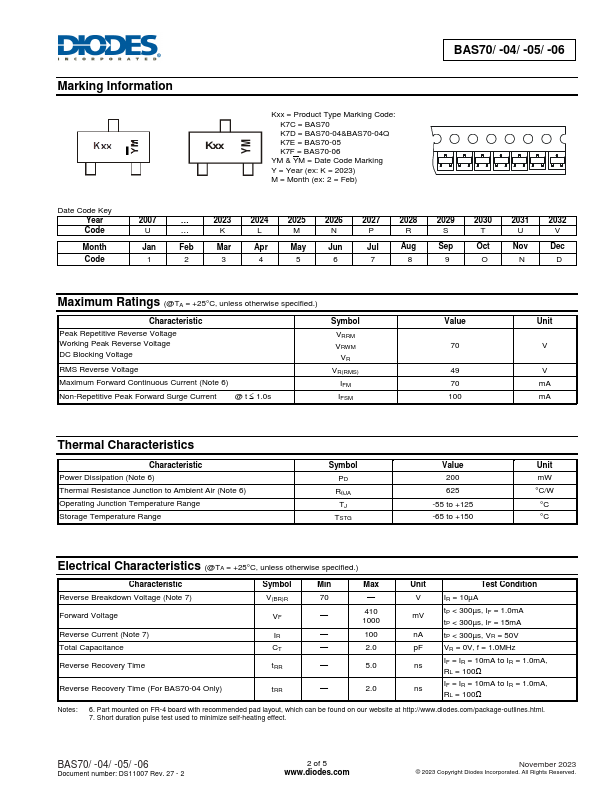

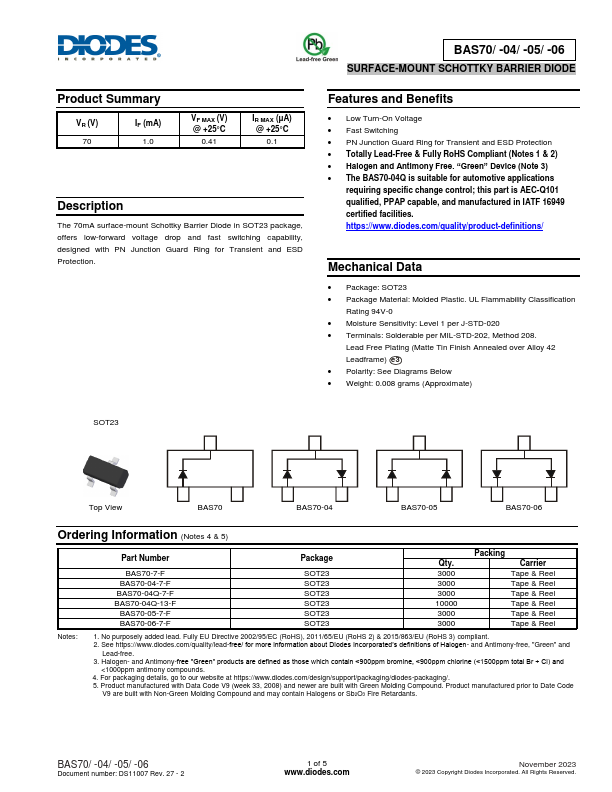

Product Summary VR (V) 70 IF (mA) 1.0 VF MAX (V) @ +25°C 0.41 IR MAX (μA) @ +25°C 0.1 Description The 70mA surface-mount Schottky Barrier Diode in SOT23 package, offers low-forward voltage drop and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection. BAS70/ -04/ -05/ -06 SURFACE-MOUNT SCHOTTKY BARRIER DIODE Features and Benefits  Low Turn-On Voltage  Fast Switching  PN Junction Guard Ring for Transient and ESD Protection  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  The BAS70-04Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.
