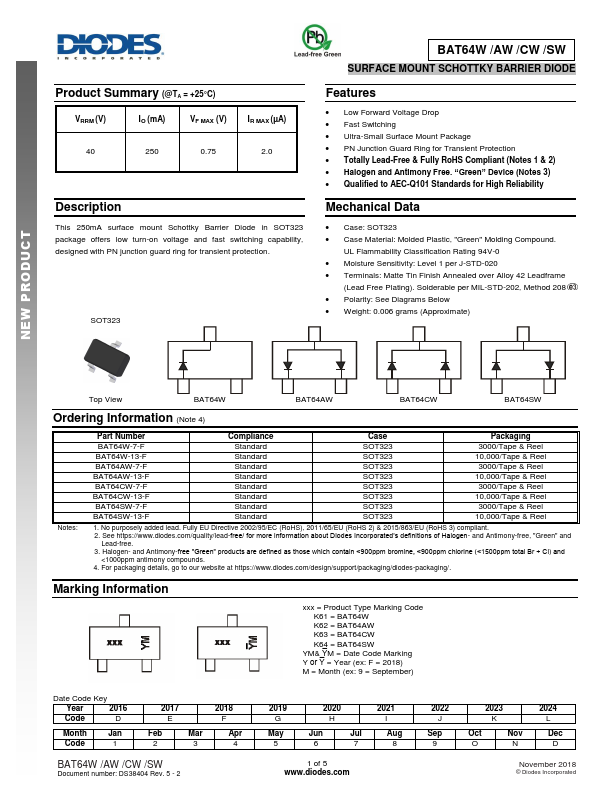

BAT64W Datasheet Surface Mount Schottky Barrier Diode

Manufacturer: Diodes Incorporated

Overview: Product Summary (@TA = +25°C) VRRM (V) IO (mA) VF MAX (V) IR MAX (µA) 40 250 0.75 2.

General Description

This 250mA surface mount Schottky Barrier Diode in SOT323 package offers low turn-on voltage and fast switching capability, designed with PN junction guard ring for transient protection.

SOT323 BAT64W /AW /CW /SW SURFACE MOUNT SCHOTTKY BARRIER DIODE

Key Features

  • Low Forward Voltage Drop.
  • Fast Switching.
  • Ultra-Small Surface Mount Package.
  • PN Junction Guard Ring for Transient Protection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Notes 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOT323.
  • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level.
