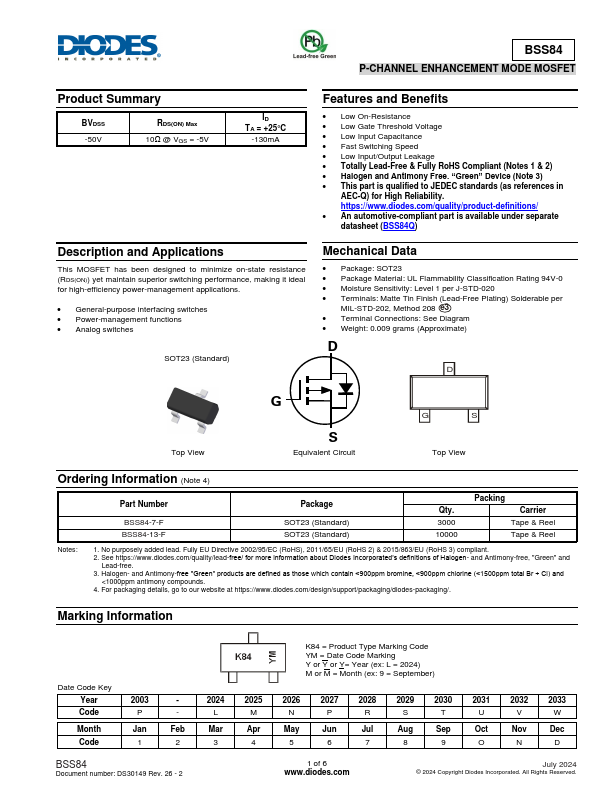

BSS84 - P-CHANNEL ENHANCEMENT MODE MOSFET

📥 Download Datasheet

General Description

and Applications This MOSFET has been designed to minimize on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

• General-purpose interfacing switches • Power-management functions • Analog switches SOT23 (Standard) Mechanical Data • Package: SOT23 • Package Material: UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Matte Tin Finish (Lead-Free Plating) Solderable per MIL-STD-202, Method 208 e3 • Terminal Connections: See Diagram • Weight: 0.009 grams (Approximate) D D Top View G S Equivalent Circuit G S Top View Ordering Information (Note 4) Notes: Part Number BSS84-7-F BSS84-13-F Package SOT23 (Standard) SOT23 (Standard) Qty.

3000 10000 Packing Carrier Tape & Reel Tape & Reel 1.

Overview

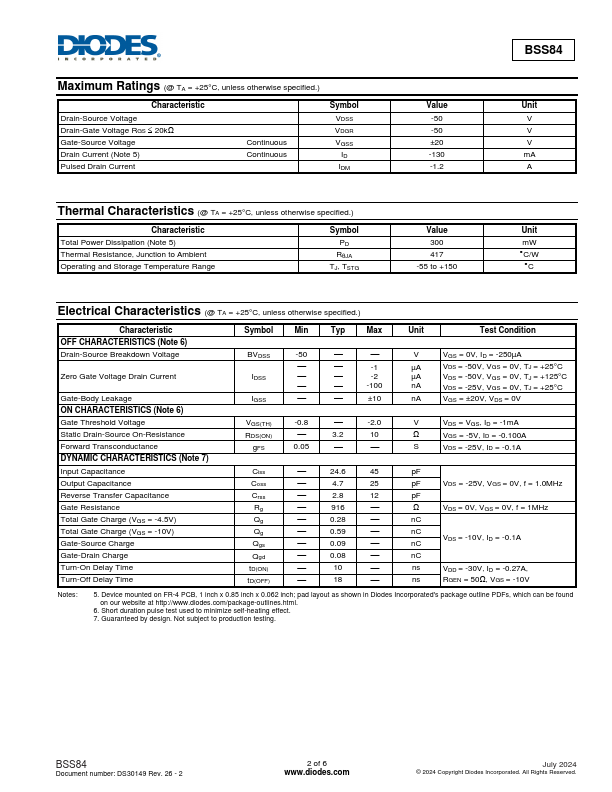

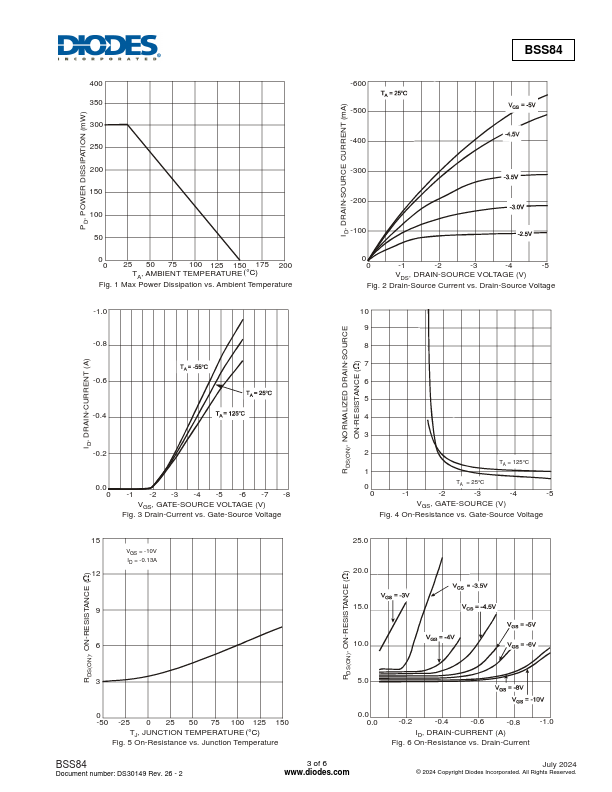

BSS84 P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -50V RDS(ON) Max 10Ω @ VGS = -5V ID TA =.

Key Features

  • Low On-Resistance.
  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Low Input/Output Leakage.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www. diodes. com/quality/product-definitions/.
  • An automotive-compliant part is available under se.
